Module Overview ABB DSQC352 high-performance input/output module is a core device designed for industrial automation scenarios. Its compact design and powerful functions enable it to operate stably in complex industrial environments and efficiently realize data interaction between external devices and automation systems, which is an important part of automated production lines and industrial control systems to realize precise control and monitoring.
Hardware Architecture Overall Layout The module adopts standard size design, which is easy to be installed in various control cabinets. The shell has good protection performance, can effectively resist dust, moisture and electromagnetic interference, to ensure normal operation in harsh industrial environments. Interface Configuration Power supply interface: support DC 24V power supply, power input port with over-voltage, under-voltage protection, when the voltage exceeds the range of 18-30V, it will automatically cut off the power supply to protect the internal circuit of the module, and at the same time, it is equipped with reverse connection protection to prevent damage to the module due to wiring errors. Communication interface: Equipped with a variety of communication interfaces, including Profibus DP, DeviceNet and other fieldbus interfaces; Profibus DP interface communication rate up to 12Mbps, which can realize high-speed data transmission between the module and PLC and other master devices; DeviceNet interface follows the specification of DeviceNet protocol, which can be quickly networked with other devices supporting the protocol. DeviceNet interface follows DeviceNet protocol specification and can be quickly networked with other devices that support this protocol, making it convenient and flexible to access different automation systems. Input/Output Interface: The input/output ports adopt plug-and-play terminals, which is convenient for wiring and maintenance. The material of the terminals is high-quality copper alloy, which has good conductivity and oxidation resistance to ensure stable signal transmission.
Performance Parameters Input Parameters Digital input: the module is usually equipped with 16 digital input channels, which can receive TTL/CMOS level signals. Input response time is very short, typical value is less than 1ms, which can quickly capture the state changes of external devices. Support a variety of input modes, such as active high, active low, rising edge trigger, falling edge trigger, etc., can be set flexibly through the module configuration software. Input signal isolation voltage up to 500V AC, effectively preventing the impact of external electrical interference on the module. Analog Input: Generally has 8 analog input channels, supports voltage (e.g. 0 – 10V, ±10V) and current (e.g. 4 – 20mA) two types of input signals. The resolution of the analog inputs is up to 12-bit, which enables high-precision signal acquisition. The input signal range can be configured by software, and it has over-voltage protection function, when the input voltage exceeds 120% of the rated range, it will automatically carry out current limiting protection to ensure the safety of the module. Output Parameters Digital outputs: 16 digital output channels, the output type is transistor output, the maximum output current can be up to 2A, which can directly drive small relays, solenoid valves and other loads. The output response time is also less than 1ms, which can realize fast equipment control. The output signal isolation voltage is 500V AC, which can effectively isolate the external devices and modules and improve the stability of the system. Analog Output: Usually 4 analog output channels are provided, which can output voltage (e.g. 0 – 10V, ±10V) or current (e.g. 4 – 20mA) signals. The resolution of analog output is 12 bits, with high output accuracy and full scale error less than ±0.5%. The output signal has a short-circuit protection function, when the load is short-circuited, it will automatically cut off the output current to protect the module and external equipment.
Application Scenario Automobile manufacturing industry In the automobile production line, it is used to control the robotic arm, conveyor line, welding equipment, and so on. The digital input channel receives signals detected by sensors such as workpiece position and equipment status, and the analog input channel collects process parameters such as pressure and temperature; the digital output channel controls the movement of the robotic arm and the opening and closing of the fixture, and the analog output channel adjusts the welding current and spraying flow, etc., realizing automation and precise control of automobile production and improving production efficiency and product quality. Machining industry It can be connected to CNC machine tools, machining centers and other equipment. Real-time monitoring of tool status, workpiece clamping, etc. through digital input, analog input acquisition of cutting force, spindle temperature and other parameters; digital output control of coolant switch, tool change action, analog output adjustment of spindle speed, feed rate, etc., to ensure the stability and efficiency of the machining process, improve machining accuracy and equipment utilization. Chemical industry In the chemical production process, it is used to monitor and control various process parameters. The analog input collects signals such as temperature, pressure, flow, liquid level, etc., and the digital input receives valve status and equipment start/stop signals; the digital output controls valve switching, pump starting and stopping, and the analog output adjusts the opening of regulating valves, realizing the automated control and safe operation of the chemical production process and guaranteeing the stability of the process and the quality of the products.

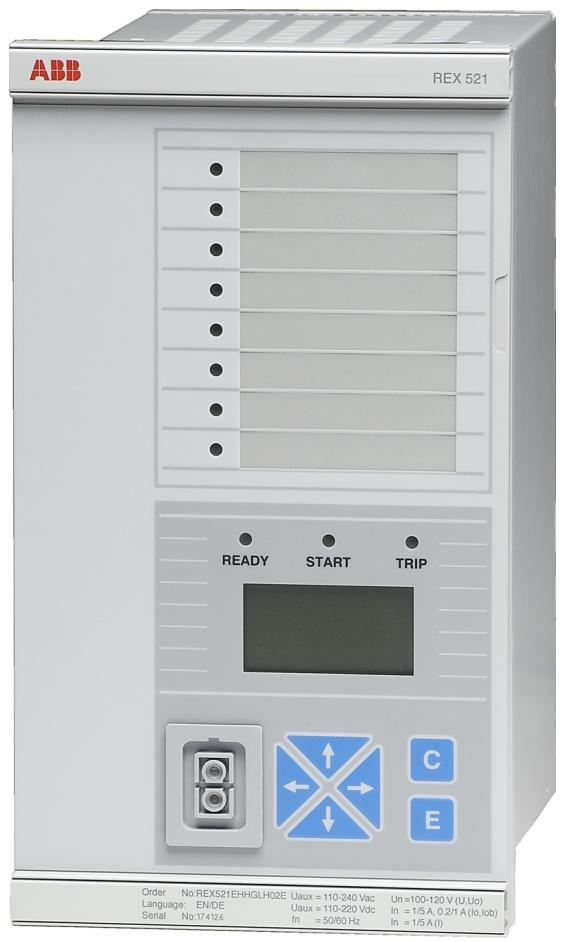

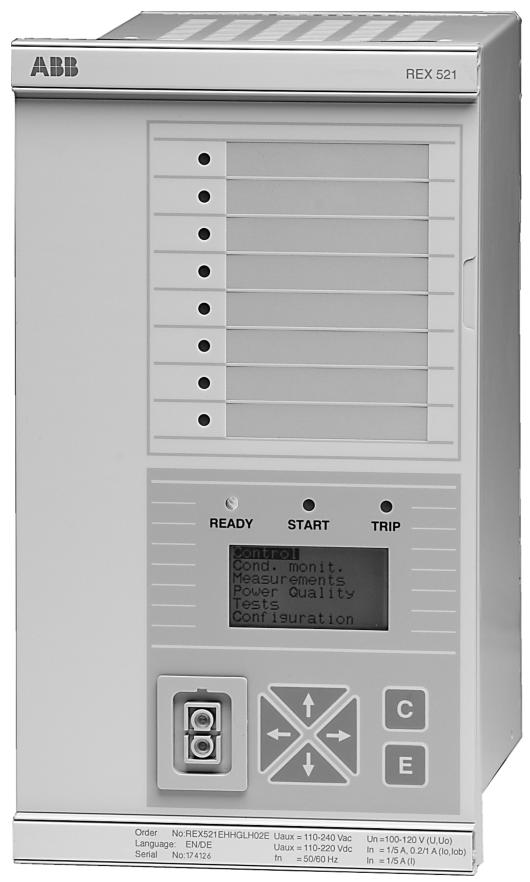

How to properly install and maintain ABB’s REX 521 protective relay?
Installation points
Electrical installation specification: The electrical installation operation must be carried out by a professional qualified electrician, strictly following the national and local electrical safety regulations. For example, in the wiring process, make sure that the wiring is firmly connected and meets the electrical safety distance requirements to prevent short circuits, leakage and other safety hazards.
Grounding requirements: the frame of the protection relay needs to be carefully grounded, so as to ensure the safety of equipment operation and personnel safety, to avoid safety accidents caused by leakage.
Avoid electrostatic damage: Since the equipment contains components sensitive to electrostatic discharge, unnecessary touching of electronic components should be avoided to prevent electrostatic damage to them and affect the normal operation of the equipment.
Hardware Installation: Depending on the hardware version (Basic, Medium, High, and Sensor versions), connect the appropriate current and voltage transformers or sensors correctly. For example, when connecting current transformers, pay attention to their ratio and polarity to ensure the accuracy of the measurement and protection functions. At the same time, connect the digital inputs and outputs as well as the communication ports according to the terminal diagram to ensure correct connections.
Communication Setting: According to the actual use requirements, manually set the communication protocol (such as SPA, LON, IEC 60870 – 5 – 103, Modbus, DNP 3.0, etc.) and related parameters (such as baud rate, address, etc.) through HMI or Relay Setting Tool. For example, when using the Modbus protocol, parameters such as CRC Order, Modbus Mode, etc. should be set correctly to ensure stable and accurate communication.
Maintenance Points
Environmental inspection: If the environmental conditions (e.g. temperature, humidity) are not in accordance with the provisions of the technical data, or if there are chemically active gases or dust in the surrounding environment, it is necessary to carry out a visual inspection of the relay in conjunction with the secondary test, to see if there are any signs of mechanical damage or corrosion on the relay case and terminals.
Daily inspection: During the operation of the equipment, it is necessary to check the operation status of the equipment regularly, to see whether the indicator lights are displayed normally, and to check whether the measurement data, event records, etc. are normal through the HMI or communication interface.
Troubleshooting: When the relay fails or the operating value differs greatly from the specification, it should be overhauled. Contact the manufacturer or its representative and follow professional instructions for inspection, overhaul and recalibration. For example, if an internal malfunction is detected, the cause of the malfunction needs to be accurately determined based on the malfunction codes and indication messages, and targeted repairs need to be performed.
Transportation protection: When transporting the protective relay, be careful and take measures against moisture and mechanical stress to prevent damage to the device. For example, use suitable packaging materials to ensure that the equipment is not affected by collision and moisture during transportation.
which is suitable for simple single-busbar system protection; B02 adds an automatic reclosing function on the basis of B01 to better cope
with transient faults; and M01 and M02 have added directional ground fault protection,
which is suitable for systems that have monitoring needs for the direction of faults.
The H series configurations are more versatile, covering over-voltage, under-voltage, frequency protection and other functions.
Diversified and practical functions: All configurations are generally equipped with basic measurement functions such as current measurement,
neutral current measurement, current waveform distortion measurement, etc., and they can also calculate the cumulative wear of circuit breakers,
record transient disturbances, and realize trip circuit monitoring, etc. Some configurations have special functions, such as the H series,
which is suitable for systems that need to monitor the direction of faults.
The special functions of some configurations, such as the synchronization/voltage check function of H01,
negative sequence protection and motor startup monitoring function of H07, meet the special needs of different power systems.
Application Areas
Scenarios for different configurations: Different standard configurations are suitable for different types of network systems;
B01 and B02 are suitable for basic protection and automatic reclosing scenarios for single busbar systems;
M01 and M02 are suitable for single busbar systems requiring directional ground fault protection;
H series configurations are suitable for systems with strict monitoring requirements for overvoltage, undervoltage,
frequency and other parameters according to their specific functions;
H07 and H51 can also be used for large or medium-sized systems, and can also be used for large or medium-sized systems,
H51 can also be used for the protection of large or medium-sized three-phase AC motors.
Design details
Various hardware versions: The hardware versions are divided into four types: Basic, Medium, High and Sensor.
The versions differ in terms of transformer modules, current transformers, voltage transformers, sensor channels, etc.
The Basic version is equipped with four 1/5 A current transformers, no voltage transformers and no sensor channels,
while the Sensor version has a 1/5 A current transformer, a 100 V voltage transformer and three current and three voltage sensor channels,
which offer a unique advantage in terms of measurement and signal acquisition.
The Sensor version has 1 1/5 A current transformer, 1 100 V voltage transformer, and 3 current and 3 voltage sensor channels,
offering unique advantages in measurement and signal acquisition.
Software function integration: Software functions are integrated in the standard configurations,
with different combinations of functions in the different configurations. NEF1Low, Io>> 51N – 2 NEF1High, Io>>> 51N – 3 NEF1Inst),
as well as related functions such as measurement, control and condition monitoring.
Detailed technical data
Strict electrical parameters: Rated frequency 50.0/60.0 Hz, current input ratings 0.2A/1A/5A with different thermal and dynamic current capacities.
Voltage inputs are rated at 100V/110V/115V/120V with corresponding voltage and load requirements.
Sensor inputs also have specific voltage ranges and impedance requirements.
Other parameter specifications: There are different types of auxiliary power supplies, with provisions for input voltage, voltage variation, load, ripple and so on.
Digital inputs, signal outputs, power outputs, etc. have defined electrical parameters.
For environmental conditions, service temperature ranges, transportation and storage temperature ranges, and protection classes are specified.
In addition, a variety of standard tests and electromagnetic compatibility tests have been passed to ensure reliable product performance.
ABB, a leading enterprise in the global industrial automation and electrical fields, has a profound technical accumulation and innovative development history of more than a century. With continuous R&D investment and strict quality requirements, ABB has set excellent benchmarks in numerous industries such as energy, manufacturing, and transportation. Its products are renowned for their outstanding reliability, cutting-edge technology, and wide applicability. ABB occupies an important position in the global industrial automation market, is trusted by users in various industries, and provides strong technical support for the advancement of industrial automation.
II. Product Overview
The ABB DSQC346 Servo Drive Module is a high-performance component dedicated to powering and precisely controlling servo motors within industrial automation setups. Tailored for applications that demand exacting motion control, this module acts as a critical link between the control system and the servo motor. It receives control signals from the host controller, processes these signals through its advanced internal circuitry, and then delivers precisely modulated power to the servo motor. This enables seamless control over the motor’s speed, torque, and position, facilitating the smooth operation of industrial robots, CNC machines, and other high-precision automated equipment across diverse manufacturing sectors.
III. Specification Parameters
Electrical ParametersInput Voltage: Accommodates a three-phase AC input voltage ranging from 380 – 480VAC. This wide input voltage range ensures compatibility with common industrial power grids, allowing the module to operate stably in various manufacturing environments.
Output Power: Available in multiple power ratings, typically spanning from [X1] kW to [X2] kW, depending on the specific model variant. This flexibility in power output makes it suitable for driving servo motors of different sizes and power requirements, from smaller motors used in delicate assembly tasks to larger ones in heavy-duty machining operations.
Frequency Response: Boasts an impressive frequency response rate of up to [X] Hz. This high-frequency response capability enables the module to rapidly react to changes in control signals, ensuring swift acceleration, deceleration, and speed adjustments of the servo motor, which is crucial for high-speed and dynamic industrial processes.
Control Performance Parameters
Position Control Accuracy: Leveraging sophisticated control algorithms and high-resolution feedback systems, the DSQC346 achieves remarkable position control accuracy. It can position the servo motor with an accuracy of ± [X] pulse equivalents, ensuring that industrial equipment can execute precise movements, which is vital for applications such as microelectronics assembly and precision machining where minute errors can lead to significant quality issues.
Speed Control Range: Offers a broad speed control spectrum, allowing the servo motor to operate smoothly anywhere from 0 to [Maximum Speed] rpm. The module maintains excellent speed stability throughout this range, with speed fluctuations kept within ± [X]%, ensuring consistent performance and minimizing variations in production output quality.
Torque Control Capability: Equipped with advanced torque control mechanisms, the DSQC346 can accurately regulate the torque output to the servo motor. It automatically adapts to varying load conditions, providing the right amount of torque at all times. This precise torque control is essential for applications involving heavy lifting, material handling, and operations where maintaining a consistent force is critical.
Data Transfer Rate: Facilitates high-speed data transfer, ensuring rapid communication between the module and other components in the automation network. The high data transfer rate reduces latency, enabling real-time control and monitoring, which is essential for coordinating complex automated processes.
Physical Specifications
Compact Design: Engineered with a space-saving design, the module measures approximately [Length] × [Width] × [Height]. Its compact form factor allows for easy installation in tight spaces within control cabinets or machine enclosures, making it suitable for retrofitting into existing automation systems without significant modifications.
Lightweight Construction: Weighing around [Weight] kg, the lightweight design of the DSQC346 simplifies handling during installation and maintenance. It reduces the overall weight of the automation equipment, which can be beneficial in applications where weight considerations impact the performance or mobility of the machinery.
IV. Performance Advantages
Superior Motion Control Precision
The DSQC346’s advanced control algorithms and high-fidelity feedback mechanisms work in tandem to deliver unparalleled motion control precision. Whether it’s guiding a robotic arm to pick and place tiny components with micrometer-level accuracy or controlling the precise movement of a CNC machine tool for intricate machining operations, this module ensures that the servo motor executes commands with utmost accuracy, significantly enhancing product quality and manufacturing efficiency.
Exceptional Dynamic Response
With its high-frequency response and rapid signal processing capabilities, the module offers an outstanding dynamic response. It can swiftly adapt to sudden changes in control signals, such as when a robot needs to quickly change its path or a machine tool requires rapid acceleration or deceleration. This quick responsiveness minimizes cycle times in production processes, boosting overall productivity and enabling the handling of high-speed, high-precision tasks with ease.
Robust Overload Protection
Designed with robust overload protection features, the DSQC346 can withstand transient overloads and abnormal operating conditions without damage. When faced with sudden increases in load, such as during a jam in a conveyor system or an unexpected resistance in a machining operation, the module’s protective mechanisms kick in to safeguard the servo motor and itself. This not only extends the lifespan of the equipment but also reduces downtime due to component failures, ensuring continuous and reliable operation of the industrial automation system.
Versatile System Integration
Thanks to its support for multiple industrial communication protocols and flexible interface configurations, the DSQC346 can be effortlessly integrated into a wide variety of automation systems. Whether it’s part of an ABB – centric robotic cell or integrated with non – ABB PLCs and other automation equipment, it seamlessly communicates and coordinates with other system components. This versatility allows manufacturers to build customized automation solutions tailored to their specific production requirements, reducing the complexity and cost of system integration.
User – Friendly Operation and Maintenance
The module features an intuitive user interface that simplifies parameter configuration and system commissioning. Operators can easily adjust settings such as motor speed, torque limits, and control modes through the interface or via connected control software. Additionally, it is equipped with comprehensive diagnostic functions that can quickly identify and report faults, enabling maintenance personnel to pinpoint and resolve issues promptly. The modular design of the DSQC346 also makes component replacement straightforward, minimizing maintenance time and costs.
V. Precautions
Installation Environment
Environmental Conditions: Install the DSQC346 in a clean, dry, and well – ventilated environment. Avoid areas with high humidity, dust, or corrosive gases, as these can degrade the module’s performance and lifespan. The ideal operating temperature range is [Operating Temperature Range], and storage should be within [Storage Temperature Range].
Electromagnetic Compatibility: Ensure that the installation location is away from strong electromagnetic interference sources, such as large motors, transformers, and high – voltage power lines. Use shielded cables for signal connections and proper grounding to minimize electromagnetic interference, which can disrupt the module’s normal operation and cause control inaccuracies.
Electrical Connection
Power Connection: Before connecting the power supply, double – check that the input voltage matches the module’s specified requirements. Incorrect voltage input can damage the module. Use appropriate – rated cables and connectors for power connections, and ensure that all connections are secure and properly insulated to prevent electrical hazards and short circuits.
Motor and Signal Connections: When connecting the servo motor, carefully follow the wiring diagram provided in the user manual to ensure correct phase connections. Incorrect motor wiring can lead to abnormal motor operation or damage to the motor and the drive module. For signal connections, ensure that communication cables are properly terminated and connected to the correct ports to enable reliable data transfer.
Parameter Configuration and Commissioning
Initial Setup: Before powering on the module, perform an initial parameter configuration based on the specific requirements of the servo motor and the application. This includes setting parameters such as motor model, rated speed, torque limits, and control mode. Incorrect parameter settings can result in suboptimal performance or even damage to the motor or the module.
Commissioning Tests: After the initial setup, conduct thorough commissioning tests. Start with low – speed and no – load tests to verify basic functionality, and gradually increase the speed and load while monitoring the module’s performance. Check for any abnormal noises, vibrations, or overheating during the tests. If issues are detected, review and adjust the parameters as necessary.
Regular Maintenance
Periodic Inspections: Regularly inspect the module for signs of physical damage, loose connections, or overheating. Check the status indicators on the module to ensure normal operation. Clean the module’s surface and ventilation openings regularly to prevent dust accumulation, which can affect heat dissipation.
Performance Monitoring: Periodically monitor the module’s performance parameters, such as input and output voltages, currents, and temperature. Compare these values with the normal operating ranges specified in the user manual. If any deviations are observed, investigate the cause and take appropriate corrective actions. Also, backup the module’s parameter settings regularly to facilitate quick recovery in case of a malfunction or replacement.
VI. Similar Model Supplements
Other ABB Servo Drive Modules
DSQC343: Compared to the DSQC346, the DSQC343 has a lower power output range, making it more suitable for smaller – scale automation applications or equipment with less demanding power requirements. It also offers a relatively simpler set of features and may have fewer communication protocol options, which can be a cost – effective choice for basic automation tasks where high – end functionality is not required.
DSQC346G: While sharing many similarities with the DSQC346, the DSQC346G may have enhanced features or performance improvements. It could offer higher precision in certain control aspects, better compatibility with specific ABB robotic models, or additional communication capabilities. The choice between the two would depend on the specific requirements of the industrial application, with the DSQC346G being a preferred option for more complex and demanding scenarios.
Similar Products from Other Brands
Siemens SINAMICS S120: Siemens’ SINAMICS S120 servo drive is known for its high – performance control capabilities and extensive integration with Siemens’ automation systems. It offers a wide range of power ratings and advanced control algorithms, making it suitable for various industrial applications. However, its integration with non – Siemens systems may require additional configuration and compatibility checks.
Mitsubishi MR – JE Series: The Mitsubishi MR – JE series servo drives are popular for their user – friendly operation and cost – effectiveness. They provide reliable performance for a variety of automation tasks and are well – supported by Mitsubishi’s extensive technical resources. In comparison, the ABB DSQC346 stands out with its robust build quality, high – precision control, and excellent compatibility with a wide range of industrial communication protocols, making it a strong competitor in the high – end servo drive market.
VII. Application Scenarios
Automotive Manufacturing
Robotic Assembly Lines: In automotive production, the DSQC346 Servo Drive Module is employed to control the movement of robotic arms on assembly lines. It enables robots to precisely pick and place components such as engine parts, body panels, and interior fixtures. The high – precision position and torque control ensure accurate assembly, reducing errors and improving production quality. For example, when installing delicate electronic components in the vehicle dashboard, the module’s precise control allows the robot to handle the components without causing damage.
Paint Shop Automation: In the paint shop, the module is used to control the movement of painting robots. It accurately regulates the speed and position of the robots, ensuring even and consistent paint application. The fast dynamic response of the DSQC346 allows the robots to quickly adjust their movements to follow the contours of the vehicle body, resulting in a high – quality paint finish.
Electronics Manufacturing
SMT (Surface Mount Technology) Assembly: In SMT assembly lines, the DSQC346 plays a crucial role in controlling the pick – and – place machines. It precisely positions the placement heads to pick up tiny electronic components, such as chips and resistors, and place them accurately on the printed circuit boards. The high – accuracy position control and fast speed regulation capabilities of the module are essential for achieving high – speed and high – yield SMT assembly, which is critical in the electronics manufacturing industry.
Semiconductor Wafer Handling: In semiconductor manufacturing, the module is used to control the servo motors in wafer handling equipment. It ensures the precise movement of wafers during processes such as inspection, lithography, and packaging. The ability to maintain high – precision position control and stable speed is vital for preventing damage to the delicate wafers and ensuring the quality of semiconductor products.
Machining Industry
CNC Machine Tools: In CNC machining centers and lathes, the DSQC346 Servo Drive Module controls the servo motors that drive the spindle and the axes of the machine. It enables precise control over the cutting speed, feed rate, and tool position, resulting in high – quality machining of complex parts. For example, when machining aerospace components with tight tolerances, the module’s high – precision control ensures that the parts meet the strict quality requirements.
Grinding Machines: In grinding operations, the module is used to control the movement of the grinding wheel and the workpiece. It provides accurate speed and position control, allowing for precise grinding of surfaces to achieve the desired finish and dimensional accuracy. The module’s ability to handle varying loads during the grinding process ensures consistent performance and extends the lifespan of the grinding equipment.
Logistics and Warehousing
Automated Guided Vehicles (AGVs): In automated warehouses, the DSQC346 is used to control the servo motors in AGVs. It enables the AGVs to move accurately along predefined paths, pick up and deliver goods, and navigate around obstacles. The high – precision position control and fast response of the module ensure the efficient operation of AGVs, improving the productivity and throughput of the warehouse.
Conveyor Systems: The module is also utilized in conveyor systems to control the speed and movement of conveyor belts. It can adjust the belt speed based on the load and the production requirements, ensuring smooth material flow. The precise torque control of the DSQC346 allows the conveyor system to handle different types of goods, from lightweight packages to heavy pallets, without slippage or damage.
ABB, a leading enterprise in the global industrial automation and electrical fields, has a profound technical accumulation and innovative development history of more than a century. With continuous R&D investment and strict quality requirements, ABB has set excellent benchmarks in numerous industries such as energy, manufacturing, and transportation. Its products are renowned for their outstanding reliability, cutting-edge technology, and wide applicability. ABB occupies an important position in the global industrial automation market, is trusted by users in various industries, and provides strong technical support for the advancement of industrial automation.
II. Product Overview
The ABB DSQC346G Servo Drive is a high-performance servo drive specifically designed for industrial robots and high-precision automation equipment. It plays a core role in the automation control system by driving and precisely controlling servo motors. Through rapid and accurate adjustment of the motor’s speed, torque, and position, it enables high-precision motion control of the equipment. The drive can receive command signals from the controller, process and amplify the signals internally, and then output appropriate drive signals to the servo motor, ensuring the stable and efficient operation of industrial robots and automation equipment in complex production processes. It is widely used in industrial fields with extremely high requirements for motion control accuracy, such as automotive manufacturing, electronics assembly, and machining.
III. Specification Parameters
Electrical Parameters
Input Voltage: It usually supports three-phase AC input, with a voltage range of 380 – 480VAC, which is suitable for common industrial power supply environments and ensures the stable operation of the drive.
Output Power: It is available in multiple power specifications to meet the power requirements of different servo motors. The output power range is generally [X] kW – [X] kW, and the specific values vary according to different models.
Frequency Response: It has excellent frequency response performance, capable of quickly responding to changes in control signals. The response frequency can reach [X] Hz, ensuring the fast start-stop and precise speed regulation of the motor.
Control Performance Parameters
Position Control Accuracy: By adopting advanced control algorithms and high-precision feedback systems, it achieves extremely high position control accuracy, which can reach ± [X] pulse equivalents, ensuring the precise positioning of the equipment’s movement.
Speed Control Range: It has a wide speed control range and can operate stably between 0 – [maximum speed value] rpm. It also has good speed stability, with a speed fluctuation of less than ± [X]%.
Torque Control Capability: It has strong torque control capabilities and can automatically adjust the output torque according to load changes. The torque control accuracy is high, meeting the precise torque requirements under different working conditions.
Communication Interfaces
It supports a variety of industrial communication protocols, such as EtherCAT, Profinet, DeviceNet, etc., facilitating high-speed and stable data interaction with upper-level devices such as PLCs and robot controllers. Through these communication interfaces, remote parameter setting, status monitoring, and real-time control of the drive can be realized, which is convenient for system integration and automated management.
Physical Specifications
Dimensions: It adopts a compact design structure, with an approximate size of [length × width × height specific values], saving installation space and facilitating layout and installation inside the equipment.
Weight: The weight is moderate, about [specific weight value] kg, making it convenient for handling and installation operations.
IV. Performance Advantages
High-Precision Motion Control
With advanced control algorithms and high-precision encoder feedback, it can achieve precise control of servo motors, ensuring high-precision and stable movement of the equipment. In production processes with extremely high requirements for position and speed control, such as precision electronics assembly and semiconductor manufacturing, it can effectively improve product quality and production efficiency.
Fast Dynamic Response
It has an extremely fast dynamic response speed, capable of quickly responding to changes in control signals and rapidly adjusting the motor’s operating state. In automated production scenarios with high-speed movement and frequent start-stop operations, such as robot handling operations on automotive production lines, it can significantly shorten the equipment’s action cycle and improve production efficiency.
Strong Overload Capacity
It has excellent overload protection and handling capabilities. It can withstand large overload currents in a short time, adapting to sudden load changes that may occur in industrial production, protecting the drive and motor from damage, and improving the reliability and service life of the equipment.
Flexible System Integration
With rich communication interfaces and support for multiple industrial communication protocols, it can be easily integrated into different automation control systems. Whether it is used in conjunction with ABB’s own robot control system or coordinated with other brands’ PLCs, upper-level computers, and other devices, seamless docking can be achieved, making it convenient for users to build personalized automation solutions according to actual needs.
Convenient Operation and Maintenance
It is equipped with an intuitive operation interface and parameter setting functions, making it convenient for users to adjust parameters and debug the system. At the same time, it has a complete fault diagnosis and alarm function, which can quickly locate the cause of the fault, reduce downtime, and lower maintenance costs. The modular design structure also makes it more convenient to replace damaged components, improving the maintainability of the equipment.
V. Precautions
Installation Environment Requirements
It should be installed in a dry, well-ventilated environment without corrosive gases, avoiding high-temperature, humid, and dusty places. The installation location should be kept away from strong electromagnetic interference sources, such as large motors and transformers, to prevent electromagnetic interference from affecting the normal operation of the drive and the accuracy of signal transmission. The temperature of the installation environment should be controlled within the range of [working temperature range values] to ensure that the drive operates under suitable temperature conditions.
Electrical Connection Specifications
Before making electrical connections, the power supply must be turned off, and the wiring should be carried out correctly in strict accordance with the product wiring diagram. Ensure that the input power cables, motor connection cables, communication cables, etc., are firmly connected to avoid problems such as looseness and short circuits. Pay attention to distinguishing the functions and wiring requirements of different interfaces. In particular, the phase sequence of the input power supply should not be connected incorrectly to prevent damage to the drive. For high-power drives, it is also necessary to ensure that the capacity and stability of the power supply meet the requirements.
Parameter Setting and Debugging
Before use, the parameters of the drive should be correctly set according to the parameters of the equipped servo motor and actual application requirements, such as motor model, rated current, speed control mode, position control parameters, etc. During system debugging, gradually check the operating status and control performance of the drive, conducting tests step by step from low speed to high speed and from no-load to full-load. If problems are found, adjust the parameters in a timely manner and troubleshoot faults to ensure the normal operation of the drive and motor.
Regular Maintenance
Regularly inspect the appearance of the drive to check for any signs of damaged casing, abnormal cooling fans, loose terminal connections, etc. Regularly clean the surface of the drive and the heat dissipation channels to ensure good heat dissipation performance. According to the recommendations in the product manual, regularly perform functional tests and performance calibrations on the drive, check whether the output voltage, current, frequency, and other parameters of the drive are normal, promptly identify potential problems and address them to extend the service life of the drive. At the same time, back up the parameter settings of the drive to quickly restore the system settings in case of failures or when the drive needs to be replaced.
VI. Similar Model Supplements
Other ABB Servo Drive Models
There are some servo drives with similar functions to the DSQC346G in ABB’s product line, such as the DSQC343. Compared with the DSQC346G, the DSQC343 may differ in aspects such as power range, control performance, and communication interfaces. For example, the DSQC343 has a relatively smaller power specification and is suitable for small automation equipment with lower power requirements, while the DSQC346G is suitable for large industrial robots and high-precision automation equipment with higher requirements for driving force and accuracy due to its higher power output and better control performance.
Similar Products from Other Brands
Other brands in the market also offer servo drives with similar functions, such as Siemens’ SINAMICS series and Mitsubishi’s MR-JE series. These products have their own advantages in technical characteristics, performance indicators, and application fields. Siemens’ SINAMICS series servo drives perform well in compatibility with Siemens’ PLC systems and have rich function modules and strong network communication capabilities. Mitsubishi’s MR-JE series servo drives are favored by users for their high cost-performance ratio and easy-to-use operation interfaces. In comparison, the ABB DSQC346G Servo Drive has strong competitiveness in high-end industrial application scenarios due to ABB’s deep technical accumulation in the field of industrial automation, excellent reliability, and comprehensive after-sales service system, especially in collaborative work with ABB robots.
VII. Application Scenarios
Automotive Manufacturing Industry
It is widely used in the drive control of robot arms on automotive automation production lines, realizing precise welding, assembly, painting, and other processes of automotive parts. For example, during body welding, the DSQC346G Servo Drive precisely controls the movement trajectory and speed of the robot arm, ensuring accurate welding point positions and stable welding quality. In the automotive engine assembly process, it drives the servo motor to achieve high-precision installation of components, improving the assembly accuracy and performance of the engine.
Electronics Manufacturing Industry
In the production process of electronic products, it is used to control the movement of high-precision automation equipment such as SMT placement machines and semiconductor packaging equipment. In the SMT placement process, it precisely controls the movement of the placement head and the placement position of components, achieving high-speed and precise placement of electronic components, and improving the production efficiency and yield of electronic products. In the field of semiconductor packaging, it drives the servo motor to complete high-precision handling, bonding, and other operations of chips, ensuring the packaging quality of semiconductor devices.
Machining Industry
In CNC machine tools, machining centers, and other equipment, it serves as the driving device for servo motors, realizing precise feed of the machine tool table and speed regulation of the spindle. Through the high-precision motion control of the DSQC346G Servo Drive, the machining accuracy and surface quality of mechanical parts are improved, meeting the processing requirements of complex parts. It is widely used in fields with high requirements for machining accuracy, such as aerospace and mold manufacturing.
Logistics and Warehousing Industry
In automated logistics and warehousing systems, it is used to drive the servo motors of stacker cranes, shuttle cars, and other equipment, realizing the automatic storage and retrieval of goods. It precisely controls the movement speed and position of the equipment, ensuring that goods are stored and retrieved accurately, improving the efficiency and automation level of logistics and warehousing. At the same time, in conveying and sorting equipment, the servo drive can also be used to precisely adjust the speed of the conveyor belt and control the precise actions of the sorting mechanism.
Product Overview ABB DSQC327A is a high-performance module designed for industrial automation application scenarios, playing a key role in automation control systems. It is mainly used to achieve efficient signal processing and precise control. By receiving and converting various control signals, it drives related equipment to perform corresponding actions to ensure the stable and efficient operation of industrial production processes. With advanced technology and reliable performance, this module can meet the automation control needs in a variety of complex industrial environments. Specifications
Electrical parameters Working voltage: usually adapted to 24VDC DC power supply to ensure stable operation under industrial standard power supply environment, and provide reliable power support for the normal realization of the internal circuit and function of the module. Signal processing capability: It has powerful signal processing capabilities and can quickly and accurately process various input electrical signals, including digital signals and analog signals. For digital signals, it can achieve high-speed logical judgment and transmission; for analog signals, it has high-precision A/D conversion and processing capabilities to ensure signal integrity and accuracy.
Interface configuration Digital input and output interface: Equipped with multiple digital input and output interfaces, it can flexibly connect various digital sensors and actuators, such as proximity switches, solenoid valves, etc. Through these interfaces, the device status information can be collected in real time, and the control instructions can be accurately transmitted to the actuator to achieve precise control of the device. Communication interface: Supports a variety of industrial communication protocols, such as Profinet, DeviceNet, etc. These communication interfaces can interact with PLC, host computer and other devices stably and at high speed, making it convenient for the module to be integrated into different automation systems and achieve collaborative work between systems.
Physical specifications Dimensions: The module adopts a compact design with an outer size of approximately [specific size value]. This small size allows it to be easily installed in a control cabinet or equipment with limited space, without taking up too much space, and is convenient for system layout and installation. Weight: The weight is light, approximately [specific weight value], which reduces the overall weight burden of the equipment and is more convenient during installation and handling. IV. Performance advantages High reliability and stability: It adopts high-quality electronic components and a sturdy and durable structural design, and has undergone strict quality inspection and testing processes. In harsh industrial environments such as high temperature, humidity, and strong electromagnetic interference, it can still maintain a stable and reliable operating state, effectively reduce the probability of failure, reduce equipment downtime, and ensure the continuity of industrial production.
Accurate signal processing: With advanced signal processing technology, it can sample, analyze and convert input signals with high precision to ensure the accuracy and timeliness of output signals. In industrial automation scenarios with extremely high control accuracy requirements, such as precision machining and electronic manufacturing, it can achieve precise control of equipment and improve product quality and production efficiency.
Flexible scalability: Rich interface configuration and support for multiple communication protocols make it have good scalability. Users can easily connect and integrate with other devices or modules according to actual needs to build a more powerful and complex automation control system. Whether it is upgrading and renovating an existing system or building a new automated production line, DSQC327A can be easily adapted.
Easy to install and maintain: The module adopts a standardized design and supports DIN rail installation. The installation process is simple and fast, without the need for complex tools and professional skills. At the same time, it is equipped with clear and intuitive status indicators to facilitate quick diagnosis of equipment operation status and troubleshooting. The modular design structure also makes it easier to replace damaged parts, reduces the difficulty and cost of maintenance, and improves the maintainability of the equipment.
Precautions Installation environment requirements: It should be installed in a dry, well-ventilated environment without corrosive gases, and avoid high temperature, humidity, and dusty places. The installation location should be away from strong electromagnetic interference sources such as large motors and transformers to prevent electromagnetic interference from affecting the normal operation of the module and the accuracy of signal transmission. Electrical connection specifications: Before making electrical connections, be sure to disconnect the power supply and strictly follow the product wiring diagram to make correct connections. Ensure that the wiring is firm to avoid problems such as looseness and short circuits. Pay attention to distinguishing the functions and wiring requirements of different interfaces to prevent equipment damage or system failure due to wrong connections.
Parameter setting and debugging: Before use, the various parameters of the module, such as communication protocol, input and output signal type, etc., must be correctly set according to the actual application scenario and control requirements. During the system debugging process, gradually check the function and signal transmission of the module, and adjust and solve problems in time to ensure the normal operation of the module. Regular maintenance: Regularly inspect the appearance of the module to check whether there are any abnormal conditions such as broken shell and burn marks. Clean the dust on the surface of the module regularly to ensure good heat dissipation performance. According to the recommendations of the product manual, perform functional tests and performance calibration on the module regularly to promptly identify and handle potential problems and extend the service life of the module.
Similar model supplement ABB other related module models: There are some modules with similar functions to DSQC327A in the ABB product line, such as DSQC322. Compared with DSQC327A, DSQC322 may differ in signal processing capabilities, interface configuration, communication protocol support, etc. For example, DSQC322 may focus on certain specific functions, while DSQC327A has more advantages in overall performance and functional integration, and is suitable for complex industrial scenarios with higher requirements for automation control. Similar products of other brands: Other brands on the market have also launched industrial automation modules with similar functions, such as related products of Siemens, Schneider and other brands. These products have their own advantages in technical characteristics, performance indicators and application fields. Siemens modules may excel in compatibility with Siemens’ own automation systems; Schneider products may be unique in electrical protection functions. In contrast, ABB DSQC327A is highly competitive in terms of product stability, versatility and cost-effectiveness, thanks to ABB’s strong technical R&D capabilities, perfect after-sales service system and rich industrial application experience.
ABB DSQC322 is a controller relay module designed for industrial automation control system.
It is mainly used to realize the isolation, amplification and conversion of electrical signals,
and plays a key role in signal transmission and control execution in automation systems.
By receiving the command signal from the controller, DSQC322 can drive the relay action,
and then control the start and stop of external equipment, such as motors, solenoid valves, indicator lights, etc.,
to realize the automation control and precise management of industrial production processes.
Specification
1.Electrical Parameters
Working voltage: the usual working voltage is 24VDC, adapting to the common industrial DC power supply environment to ensure stable operation.
Contact capacity: Contacts can withstand high voltage and current, generally AC voltage can be up to 250VAC, DC voltage can be up to 30VDC;
current, contact rated current can be up to 5A, can meet the control needs of a variety of industrial loads.
Coil Parameters: Relay coils have specific working voltage and current requirements, and when supplied with 24VDC, the coil consumes less power,
which effectively reduces the energy consumption of the system.
2. Number of channels: The module is equipped with several independent relay channels, generally 8 channels,
which can control 8 different load devices at the same time, realizing parallel processing and control of multiple signals.
3. Isolation characteristics: each relay channel has a good electrical isolation performance between the isolation voltage up to 1500VAC or more,
effectively preventing signal interference and electrical faults affect each other, improve the stability and safety of the system.
4. Response time: the action of the relay responds quickly, with a shorter time of absorption and release,
usually less than 10ms absorption time and less than 15ms release time,
which enables it to respond quickly to control signals and ensures the real-time nature of the system.
5. Mechanical life and electrical life: has a long service life, mechanical life of up to 10 million times or more,
electrical life in the rated load can be up to 100,000 times or more,
reducing the frequency of maintenance and replacement of equipment, reduce the cost of use.
6. Physical Specifications
Dimensions: Compact module size, generally about 100mm × 80mm × 40mm (different versions may vary slightly),
easy to install in space-limited control cabinets or equipment.
Weight: light weight, about 0.3kg, will not bring too much burden to the equipment installation and layout.
Performance Advantages
1. High reliability and stability: adopting high-quality electronic components and durable mechanical structure, after strict quality inspection and testing,
to ensure that in complex industrial environments, such as high temperature, humidity, strong electromagnetic interference, etc.,
still be able to operate stably and reliably, effectively reduce the probability of failure, to protect the continuity of industrial production.
2. Flexible control capability: multiple independent relay channels can be flexibly configured according to the actual demand,
which can realize the independent control of a single device and also meet the control requirements of multiple devices working together.
Moreover, its contact capacity is large, which can be adapted to different types of load equipment with different power, with a wide range of applications.
3. Efficient signal isolation: excellent electrical isolation performance, can effectively isolate the electrical interference between different circuits,
to protect the control system from external electrical fluctuations, but also to prevent the module’s own faults on other equipment damage,
improve the anti-interference ability of the entire automation system and security.
4. Fast response and precise control: fast relay action response makes the module able to execute the controller’s commands in time,
realizing precise control of external equipment. In automated production processes with high time requirements,
such as automated production lines with fast start/stop control, it can ensure the high efficiency and accuracy of the production process.
5. Easy to install and maintain: The module adopts a standardized design and supports DIN rail mounting,
which makes the installation process simple and convenient, and can be quickly integrated into the existing automation system.
At the same time, the clear indicator design can intuitively display the working status of the relay,
which is convenient for troubleshooting and maintenance;
the modular structure also facilitates the replacement of damaged parts and reduces the difficulty and cost of maintenance.
Cautions
1. Installation environment: It should be installed in a dry, well-ventilated environment without corrosive gases, avoiding high temperature,
humidity and dusty places. The installation location should be far away from strong electromagnetic interference sources,
such as large motors, transformers, etc., to prevent electromagnetic interference affecting the normal operation of the module.
2. Electrical connection: Be sure to disconnect the power supply before wiring, and make correct wiring in strict accordance with the wiring diagram.
Ensure that the wiring is solid, to avoid loose, short-circuit and other problems.
Pay attention to the distinction between the input and output terminals and the wiring of different channels to prevent the connection of the module.
The ABB DSQC313 is a high-precision measurement board specifically designed for industrial automation scenarios, aiming to provide accurate measurement and control support for various complex production processes. It can precisely collect and process signals from various sensors, convert them into standard signals usable by the control system, and ensure real-time and accurate feedback on the operating status of industrial equipment. It is a key component for achieving precise control in industrial automation.
Specification Parameters
Electrical Parameters
Operating Voltage: Usually 24VDC, it can be adapted to common industrial DC power supplies to ensure stable operation.
Input and Output Current: The input current is approximately 10mA per channel, and the output current can reach 20mA per channel, which can meet the current drive requirements of various sensors and actuators.
Communication Specifications: It supports a variety of industrial communication protocols such as Profinet, EtherCAT, and DeviceNet, facilitating efficient data interaction with different types of automation equipment and control systems, and enabling system integration.
I/O Interfaces
Digital I/O: Equipped with 8 digital input channels and 8 discrete output channels, it can flexibly connect various digital sensors and actuators, such as proximity switches and relays.
Analog I/O: It has 2 analog input channels and 2 analog output channels, suitable for connecting analog sensors (such as pressure sensors and temperature sensors) and actuators (such as control valves) to achieve precise measurement and control of analog signals.
Solid State Relay Channels: There are 4 solid state relay channels, which can be used to control high-voltage and high-current loads, and have the advantages of no contacts, long service life, and fast switching speed.
Environmental Adaptability
Operating Temperature: The operating temperature range is -20°C to +60°C, and the storage temperature range is -40°C to +70°C. It can operate stably in various harsh industrial environments.
Protection Level: It has a certain protection design, which can resist the influence of common industrial environmental factors such as dust and moisture, and ensure the long-term reliable operation of the equipment.
Physical Specifications
Dimensions: Approximately 74mm×54mm×25.4mm (there may be slight differences in different versions), and the compact design makes it easy to install in control cabinets or equipment with limited space.
Weight: Approximately 0.1kg, and the light weight will not bring excessive burden to the installation and layout of the equipment.
Performance Advantages
High-precision Measurement: It adopts advanced signal processing technology and precise A/D and D/A conversion chips to accurately measure and convert various input signals. The measurement accuracy can reach ±0.1% FS (full scale) or even higher, providing accurate data for industrial production processes and helping to improve product quality and production efficiency.
Flexible I/O Configuration: With a rich variety of I/O interface types and quantities, it can be flexibly configured according to actual industrial application scenarios to meet the connection requirements of different devices and systems. Whether it is simple single-machine automation or complex production line automation, it can handle it easily.
Efficient Communication Capability: With the help of a variety of advanced communication protocols, the DSQC313 can achieve high-speed and stable data transmission with other automation devices. The data transmission rate is fast, and the delay is low, ensuring timely and accurate information interaction between various parts of the system, achieving collaborative work, and improving the response speed and operation efficiency of the entire automation system.
High Reliability and Stability: From the selection of hardware materials to the circuit design, it has undergone strict screening and optimization. High-quality electronic components are used, and it has excellent anti-interference ability. It can operate stably in harsh industrial environments such as strong electromagnetic interference and voltage fluctuations, reducing the probability of failures and lowering maintenance costs.
Easy Integration and Use: The module design follows standardization principles, and the installation method is simple. It can be fixed by DIN rail or screws. At the same time, detailed user manuals and rich programming examples are provided, and it supports a variety of common programming software and languages, which is convenient for engineers to carry out system integration and secondary development, shortening the project development cycle.
Precautions
Selection of Installation Environment: It should be installed in a dry, well-ventilated environment without corrosive gases, and avoid high-temperature, humid, and dusty environments. The installation location should be kept away from strong electromagnetic interference sources such as large motors and transformers to prevent electromagnetic interference from affecting the measurement accuracy and data transmission stability.
Electrical Connection Specifications: Disconnect the power supply before wiring, and make correct wiring strictly according to the wiring diagram. Ensure that the wiring is firm to avoid problems such as looseness and short circuits. Pay attention to distinguishing different interface types and polarities to prevent damage to the equipment caused by incorrect wiring.
Parameter Setting and Calibration: Before use, various parameters of the measurement board, such as the measurement range and filtering parameters, should be correctly set according to the actual measurement requirements and equipment characteristics. Regularly calibrate the measurement board to ensure that the measurement accuracy remains within the specified range.
Software Programming and Maintenance: Follow relevant programming specifications for software development to avoid logical errors. Regularly update and maintain the equipment software to obtain the latest functions and performance optimizations, and at the same time, pay attention to the security patches released by ABB officially and repair potential vulnerabilities in a timely manner.
Application Scenarios
Automobile Manufacturing Industry: In the automobile production line, it is used to monitor and control parameters such as the position and force of the robot arm to ensure the precise assembly of components. At the same time, it can perform high-precision measurement and control of various process parameters in the automobile production process, such as welding current, voltage, and the pressure and flow of painting equipment, to ensure the quality of automobile production.
Electronic Manufacturing Industry: In the electronic product manufacturing process, it can precisely collect and process the measurement data of the SMT placement accuracy of SMT equipment and the component detection equipment. For example, by measuring parameters such as the pin spacing of electronic components on the circuit board and the quality of solder joints, it can achieve strict control over product quality and improve the yield rate of electronic products.
Food Processing Industry: It is used to monitor the operating parameters of food processing equipment, such as temperature, pressure, and flow, to ensure that the food processing process meets hygiene standards and process requirements. For example, in the beverage filling process, it can precisely control the filling volume; in the baking food production process, it can accurately adjust the oven temperature and time to ensure the consistency of food quality.
Chemical Production Industry: In the chemical production process, it can perform real-time high-precision measurement and control of key parameters such as the temperature, pressure, and liquid level of the reaction kettle to ensure that the chemical reaction proceeds under safe and stable conditions. At the same time, it can monitor the quality parameters of chemical raw materials and products, such as concentration and pH value, to ensure the quality of chemical products.
Mechanical Processing Industry: In equipment such as numerically controlled machine tools and machining centers, it is used to measure parameters such as the position of the tool and the cutting force to achieve precise control of the processing process. Through high-precision measurement, it can improve the processing accuracy and surface quality of mechanical parts and reduce the scrap rate.

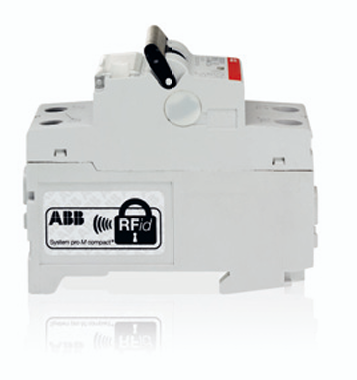

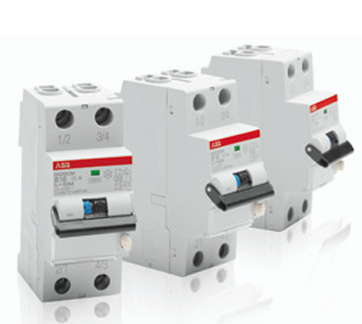

The ABB DS201 – DS202C series are new residual current operated circuit breakers (RCBOs) that combine overload protection with residual current protection to provide complete and reliable protection for circuits. Designed to meet the demanding needs of modern equipment and plants, they are an integral part of the ABB System pro M compact® system. Designed to comply with EN60715 standards, they can be easily mounted on 35mm DIN rails and play a key role in the safe operation of circuits in all types of electrical systems.
Intelligent innovation Safe and integrated technological products Like all electromechanical residual current devices, these new products ensure protection against earth fault currents, both when the power supply of the neutral wire is accidentally interrupted and when, in the 2 phase version, only one phase is present. To make wiring operations easier, the bidirectional cylinder-lift terminals based on innovative technology provide connection, through cables (25 mm2 flexible) or busbars. The DS201 and DS202C series are designed to be easily installed on a 35 mm symmetrical DIN rail, in compliance with the EN 60715 standard.
The DS201 series replaces the actual range of 1P+N RCBOs and combines protection against overcurrent and earth fault current in a single device. The range is available in three versions: DS201 L (with 4,5 kA breaking capacity), DS201 (with 6 kA breaking capacity) and DS201 M (with 10 kA breaking capacity), in compliance with the IEC/EN 61009 standard. The new range in two modules has 2 different characteristics (B and C), with rated current up to 40 A and meets all the protection requirements of single-phase circuits. K characteristic is also available in the DS201 version (6 kA). The rated sensitivity vary according to version: 10, 30, 100, 300, and 1000 mA. In DS201 and DS201 M the breaking capacity of the protected pole is 6 kA, allowing it to be used in installations where, in case of earth fault, the fault current might reach this value (e.g. in TN network system).
The DS201 offering also includes the APR version, with higher protection against unwanted tripping due to surge generated, for instance, by lightning, operations on the distribution networks, disturbances, etc. The DS202C series combines protection against earth-fault current and overcurrent in a single device, guaranteeing high breaking capacities (6 kA with DS202C and 10 kA with DS202C M), in compliance with the IEC/EN 61009 standard. With just two modules the DS202C range meets all protection needs, offering choice between 2 different characteristics (B and C) and, for each of these, among 7 rated currents (6, 10, 13, 16, 20, 25, and 32 A). B characteristic allows the protection of very long lines, such as those of the single phase terminal circuits. All the DS202C devices are type A, for alternating current and/or pulsating current with DC components, suitable for installations with loads manufactured with electronic devices for rectifying current or choking of voltage and current (speed, time, light intensity, etc.). The DS202C offering also includes the APR version, with higher protection against unwanted trippings due to surge generated, for instance, by lightning, operations on the distribution networks, disturbances, etc
All the devices of the DS201 and DS202C series have been tested up to -25 °C, as indicated by the symbol marked on the front side. On the front of the device the marking also carries the 15-digit ABB code to identify the product after installation, in case of replacement and for any other needs. To ensure readability over time, the codes are laser-printed on the devices. This also makes them immediately recognizable after they have been removed from their packing. Common profile for the whole range and easier installation The new residual current circuit-breakers with overcurrent protection, due to their shape and dimensions, are perfectly integrated with the MCBs of the System pro M compact® family, which they share the wide range of accessories available and the terminal positions with, allowing considerable time savings in wiring operations.
Clear indications to identify and react to any event The signalling of the internal contact position allows an exact information of the circuit-breaker status: “green”, open contacts; “red”, closed contacts, independently of the toggle position. Any earth fault can be immediately identified through the blue indicator, that signals the differential tripping and which cannot be activated in case of manual operation on the toggle. This prevents any misinterpretations of the device and system status. Label carrier for clear and reliable identification Increasingly complex systems require easier identification of the sections corresponding to each single circuit-breaker installed in the switchboard. With the practical label carrier fitted in the new circuit breakers you can give maximum visibility to the information relating to the protected loads. Standardized accessories for the whole range The DS201 and DS202C series share the wide range of accessories available, such as signalling contacts, auxiliary contacts, shunt trips, undervoltage releases, plug-in base and motor device, with the whole range of System pro M compact® Small size for great usability The DS202C series (the letter C stands for “compact”) has two poles protected in only 2 modules and breaking capacity (Icn) up to 10 kA. The new range can meet every market requirements for this kind of devices, reducing the space needed in the switchboards
ABB DSPC406 is a professional digital signal processor module. It undertakes core computing and control tasks in various industrial automation systems and complex signal processing scenarios. Through high-speed and precise calculation and processing of the input digital signals, the DSPC406 can output the processed signals efficiently, provide reliable instructions for the subsequent execution of the system, and ensure that the whole automation system operates stably and efficiently.
Specifications Computing Performance: With strong computing power, it can complete a large number of complex digital signal processing tasks in a short period of time. The internal processor has a high-speed computing core, which can support a variety of digital signal processing algorithms to ensure the timeliness and accuracy of data processing. Storage capacity: Equipped with a certain capacity of high-speed cache and memory, which is used to temporarily store the data and instructions in the process of computing. Sufficient storage capacity ensures that the module will not be affected by data storage problems when processing large-scale data. Interfaces: There are a variety of interfaces, including digital input/output interfaces, communication interfaces, and so on. Common digital interfaces can conveniently interact with other digital devices to realise signals; communication interfaces such as Ethernet interface, serial port, etc., support stable data transmission between the module and the host computer and other intelligent devices, which is convenient to build a complex automation system network. Working voltage: generally adapt to common industrial voltage, the specific value should be determined according to the product manual, to ensure stable operation in the standard industrial voltage environment. Operating temperature range: able to adapt to a wide range of temperatures, usually operating temperature range between – 20 ℃ – 60 ℃, can work in different industrial scenarios under normal temperature conditions, showing good environmental adaptability.
Performance Advantages High-speed and Precise Computing: Adopting advanced digital signal processing technology and high-performance processor, it can achieve high-speed computing and maintain high accuracy when processing complex digital signals. Whether it is the real-time monitoring of high-frequency signals or the rapid implementation of complex algorithms, it can be completed, effectively improving the system’s control accuracy and response speed. Reliable and stable: from hardware design to software algorithms, all have been strictly tested and optimised. High-quality electronic components and mature manufacturing processes ensure that the module can still operate stably in harsh industrial environments, such as strong electromagnetic interference, voltage fluctuations, etc., reducing the probability of failure and guaranteeing the long-term reliable operation of the system. Flexible Adaptability: Rich interface types and configurable software parameters make it flexible to adapt to different industrial automation systems. Whether it is the upgrading of an existing system or the construction of a new automation system, the DSPC406 can be adjusted and configured according to the actual needs, which greatly improves the versatility and scope of application of the product. Efficient data transmission: With advanced communication interface technology, the data transmission rate between the module and other devices is fast and stable. In automation scenarios where multiple devices work together, data can be exchanged quickly and accurately, ensuring the smoothness and coordination of the overall operation of the system.
Precautions Installation environment selection: It should be installed in a dry, well-ventilated environment with no corrosive gas. Avoid high temperature, humidity, dusty places to prevent environmental factors affecting module performance and service life. At the same time, the installation location should be away from large motors, transformers and other sources of strong electromagnetic interference, to prevent electromagnetic interference resulting in abnormal signal processing. Voltage matching and power supply stability: Before accessing the power supply, be sure to strictly refer to the product manual to confirm that the working voltage and the actual power supply voltage match without error. It is strictly prohibited to access too high or too low voltage to avoid damage to the module. In addition, to ensure that the power supply has good stability, minimise voltage fluctuations, consider using a regulated power supply equipment. Wiring specification operation: disconnect the power supply before wiring, strictly in accordance with the wiring diagram for the correct wiring. Ensure that the wiring is solid, to avoid loose, short circuit and other problems. Different functions of the interface wiring to distinguish clearly, to prevent the wrong connection leading to equipment failure. Software Configuration and Debugging: In software parameter configuration and system debugging, you need to follow the relevant operating manuals and specifications. Modification of key parameters should be cautious, and it is recommended that the original configuration be backed up before modification. In the debugging process, if abnormalities are found, you should consult the manual or contact professional and technical personnel to solve the problem, to avoid blind operation resulting in greater failure.
Comparable Models ABB Other Digital Signal Processor Modules: There are other Digital Signal Processor Modules in the ABB product line, such as the DSPC405, etc. Compared to the DSPC406, the DSPC406 is a digital signal processor module. Compared with DSPC406, these similar models may have differences in computing performance, storage capacity, interface configuration and other aspects. For example, the DSPC405 may be slightly slower and is suitable for smaller automation projects with less demanding computing requirements and a more limited budget. Other brands of similar modules: other brands in the market have also launched similar functions of the digital signal processor module, such as Texas Instruments (TI) part of the product in the field of digital signal processing is widely used, TI’s some modules in a specific algorithm processing has a unique advantage, but the ABB DSPC406 by virtue of ABB in the field of industrial automation of the long-accumulated technical experience and perfect after-sales support system in the integration and stability of industrial systems are more stable. Industrial system integration and stability is more competitive.
Application Scenarios Industrial automation production line: In the automation production line, the DSPC406 can process and analyse the signals collected by various types of sensors in real time. For example, in automotive production lines, it is used to monitor the running status of equipment and control the movement of robotic arms to ensure accurate control and efficient operation of the production process. Power system monitoring and control: in the power system, it can carry out high-speed processing of voltage, current and other signals in the power grid to achieve real-time monitoring and fault diagnosis of power equipment. Such as in the substation, timely detection of abnormal signals, to ensure stable power supply of the power system. Intelligent traffic control system: applied to traffic signal control, vehicle detection and so on. Through the processing of traffic sensor data, optimise the timing scheme of traffic signals, and improve the efficiency of traffic flow. Audio processing equipment: In professional audio equipment, digital processing of audio signals can be carried out to achieve audio noise reduction, mixing, equalisation and other functions to improve audio quality, commonly used in recording studio equipment, professional audio systems and so on.
