The ABB Advant OCS SC610 Sub Carrier Module (3BSE001552R1) belongs to the sub module carrier of the ABB Advant Controller 100 series. It mainly serves as an installation and connection platform for specific modules, playing an important role in building physical connection architecture and ensuring smooth communication between modules in the system. It is one of the key components in the construction of the entire automation control system architecture.
Specification parameters
Applicable series: Advant Controller 100 series
Adaptation module: mainly adapted to CI 532 communication module, one SC610 can install two CI 532 modules
Working temperature range: -20 ℃ to 60 ℃
Humidity range: 5% to 95% without condensation
Protection level: IP20
Core functions
1. Module bearing
Provide a stable physical installation platform for the CI 532 communication module, ensuring that the module maintains a stable connection under industrial environment vibration, impact and other conditions, without affecting communication and data transmission functions.
2. Electrical connection
Construct electrical connections between the CI 532 module and other parts of the system to ensure the stability and reliability of signal transmission, and achieve accurate data exchange between different modules and systems.
Working principle
The SC610 subcarrier module itself does not have complex data processing or signal conversion functions, and its working principle mainly revolves around the module’s load-bearing and electrical connections. After the CI 532 communication module is installed on the SC610, the SC610 connects the electrical pins of the CI 532 module to the system backplane bus or other related connection lines through internal printed circuit board routing and interface design. In this way, external signals (such as field device data) received by the CI 532 module can be transmitted to other parts of the system (such as controllers) for processing through the connection channel established by SC610. The processed feedback signals can also be transmitted back to the CI 532 module through this path in the reverse direction, and then transmitted to the corresponding executing devices.
Key advantages
1. Strong adaptability
Specially designed for the Advant Controller 100 series, highly compatible with the CI 532 communication module, ensuring the convenience and stability of system integration, and reducing the risk of system failure caused by compatibility issues.
2. Stable structure
The sturdy physical structure design can adapt to harsh environmental conditions such as vibration and impact in industrial sites, ensuring the reliability of module connections under complex working conditions and maintaining long-term stable operation of the system.
3. High scalability
One SC610 can install two CI 532 modules to expand communication functions within limited control cabinet space, effectively enhancing the system’s data transmission and processing capabilities, and meeting the growing communication needs of industrial automation systems.
Precautions
1. Installation environment
Ensure that the temperature and humidity of the installation environment are within the specified range of the product, and avoid installing it in places with direct sunlight, large amounts of dust, or corrosive gases to prevent damage to the module and affect its performance and service life.
2. Module installation
Strictly follow the installation manual provided by ABB to install the CI 532 module on SC610, ensuring proper installation and secure connection, and avoiding problems such as poor contact and abnormal signal transmission caused by improper installation.
3. System configuration
When integrating the SC610 with CI 532 module into the entire automation control system, it is necessary to use ABB’s corresponding software tools to correctly configure the relevant parameters of the module (such as communication address, data transmission rate, etc.) to ensure the normal operation of the overall communication and control functions of the system.
Application scenarios
1. Industrial automation production line
In automated production lines such as automobile manufacturing and electronic equipment production, it is used to connect the CI 532 communication module to achieve efficient communication between on-site devices (such as sensors, actuators, etc.) and control systems, ensuring the automated operation and precise control of the production line.
2. Power system monitoring
In power facilities such as substations and power plants, the CI 532 module is used to collect and transmit operational status data of power equipment, providing data support for monitoring and scheduling of the power system, and ensuring stable and reliable operation of the power system.
3. Smart factory
In the construction of smart factories, as part of the automation control system architecture, it helps to build an efficient communication network, achieve interconnectivity and collaborative work between various production processes and equipment within the factory, and enhance the intelligent management and production level of the factory.
The ABB SC51 analog input module is a carefully designed key equipment for data acquisition in industrial automation systems. It can accurately convert various analog signals into digital signals for control systems to process and analyze, playing an important role in improving the automation and intelligence level of industrial production, ensuring the efficient, stable, and accurate operation of various industrial processes.
Brand background
As mentioned earlier, ABB Group, to which the ABB 3BSE002098R1 SB512 power supply belongs, has been deeply involved in the field of industrial automation for many years. With a profound technical foundation and innovative spirit, ABB continuously launches cutting-edge products. Its rich experience in automation system solutions has injected strong impetus into the development of the SC51 analog input module, enabling the module to inherit ABB’s high standards for quality and performance.
Specification parameters
Input Channel: Typically equipped with multiple analog input channels, such as 8 or 16 channels, it can simultaneously connect multiple analog signal sources to meet the diverse data acquisition needs in complex industrial scenarios, greatly improving the efficiency and comprehensiveness of data acquisition.
Input signal type: Compatible with various common analog signal types, including but not limited to 0-10V DC voltage signal and 4-20mA DC current signal. This broad compatibility allows it to seamlessly integrate with various sensors such as pressure sensors, temperature sensors, flow sensors, etc., adapting to signal acquisition requirements in different industrial environments.
Resolution: High resolution, commonly 12 or 16 bits. High resolution means that modules have extremely high sensitivity to subtle changes in analog signals, and can accurately convert analog signals into digital signals, providing more accurate data for control systems and helping to improve control accuracy in industrial production processes.
Sampling rate: With a considerable sampling rate, it can quickly sample and convert input analog signals, ensuring timely capture of signal changes, especially suitable for industrial application scenarios with high real-time requirements, such as monitoring and control of high-speed production lines.
Core functions
Signal conversion: One of the core functions is to accurately convert continuously changing analog signals into digital signals. By utilizing advanced A/D conversion technology, the conversion from analog to digital can be completed in a very short period of time, while ensuring the accuracy and stability of the conversion results, laying a solid foundation for subsequent data processing and analysis.
Signal conditioning: Before performing A/D conversion, the SC51 analog input module will perform necessary conditioning on the input analog signal. Including filtering the signal, removing noise interference from the signal, and ensuring the purity of the signal entering the A/D converter; Amplify or attenuate the signal to ensure its amplitude is within the optimal operating range of the A/D converter, further improving the conversion accuracy.
Working principle
The analog input signal first enters the input buffer circuit of the module, where the signal is preliminarily isolated and buffered to reduce interference and distortion during signal transmission. Next, the signal enters the signal conditioning circuit, undergoes filtering, amplification/attenuation, and other operations before being sent to the A/D converter. The A/D converter discretizes the conditioned analog signal according to the preset sampling rate and resolution, and converts it into the corresponding digital signal. Finally, the digital signal is transmitted to the processor of the control system through the data bus for subsequent analysis and control decision-making.
Key advantages
High precision acquisition: With high-resolution and precise signal conditioning and conversion technology, high-precision acquisition of analog signals is achieved. In industrial production, high-precision data collection can help enterprises more accurately grasp production process parameters, optimize production processes, and improve product quality and production efficiency.
High reliability: Using high-quality electronic components and advanced circuit design, the module has excellent anti-interference ability and stability. In complex industrial electromagnetic environments, it can work reliably, ensure the accuracy and continuity of data acquisition, and reduce the risk of production interruption caused by module failures.
Flexible configuration: Multiple input channels and support for multiple signal types give the module a high degree of flexibility. Users can flexibly configure input channels to connect different types of sensors according to the needs of actual industrial application scenarios, easily handling diverse data collection tasks.
Easy to integrate: Following common industrial communication protocols and interface standards, it is easy to integrate with ABB and other brands of automation control systems. Whether it is a newly built automation project or upgrading an existing system, the SC51 analog input module can be quickly and conveniently integrated into it, reducing the cost and difficulty of system integration.
Precautions
Installation environment: It needs to be installed in an environment with suitable temperature and humidity, and low electromagnetic interference. Avoid installing it in areas with high temperature, humidity, or strong electromagnetic radiation to prevent environmental factors from affecting the performance and lifespan of the module.
Wiring specifications: Strictly follow the product manual for wiring operations. Ensure that the analog signal input line is correctly connected to the power line, and the wiring is secure to avoid looseness, short circuits, or open circuits, which may affect signal transmission and normal module operation.
Signal matching: The type and amplitude range of the analog signal connected should match the specifications of the module. When connecting signal sources such as sensors, it is important to confirm whether the signal type and amplitude are within the acceptable range of the module, in order to avoid data acquisition errors or even damage to the module due to signal mismatch.
Regular calibration: To ensure the accuracy of data collection during long-term use, it is recommended to calibrate the module regularly. According to the calibration method and process provided by ABB, professional calibration equipment can be used to calibrate the module and promptly correct measurement errors caused by factors such as component aging.

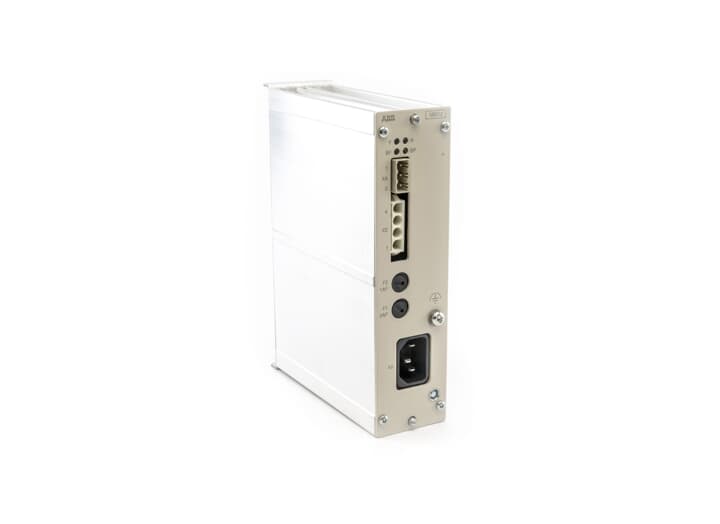

ABB 3BSE002098R1 SB512 power supply is a power module specially designed for high-performance applications in industrial automation systems. With its powerful functions and efficient compact design, it plays a key role in the industrial field, providing solid power guarantee for stable operation of various equipment.
Specification parameters
Input voltage: Supports 110/230V AC and can adapt to different AC power supply environments; Simultaneously compatible with 110/230V DC input, with a voltage allowable range of+10% -15%, demonstrating wide applicability.
Output capability: The output voltage range is 19-25V, the maximum output current can reach 1A, and the maximum output power is 20W. It can provide stable power supply for load equipment and meet the operational needs of industrial equipment.
Other parameters: The working temperature is generally between 0 ° C and 60 ° C, the storage temperature is between -40 ° C and 80 ° C, the working humidity is between 0% and 90% relative humidity (without condensation), and it is suitable for various working environment conditions. Compact and lightweight in size, convenient for installation in limited space scenarios.
Core functions
Power Conversion: Accurately convert the input 110/230V AC or DC voltage into the required 19-25V output voltage for the device, ensuring that the device receives appropriate power.
Stable power supply: Through internal precision circuits and intelligent control algorithms, it continuously provides stable current and voltage to load devices, ensuring their normal operation and reducing faults caused by power fluctuations.
Product advantages
Durable and sturdy: Made of high-grade materials, the structure is sturdy and can withstand harsh working conditions, making it suitable for continuous operation in manufacturing production lines and process control systems.
Stable power supply: Equipped with precision circuits and intelligent control algorithms, ensuring stable power output is crucial for maintaining system reliability and normal operation time. It is widely applicable to various applications from robots to HVAC systems, ensuring seamless integration and optimal performance.
Efficient heat dissipation: Innovative heat dissipation technology effectively achieves heat dissipation, reduces the risk of overheating, and extends the service life of modules. Combined with its compact size and lightweight design, it becomes a versatile choice for space limited installation scenarios.
Safety standards: Strictly follow international safety standards (such as CE, UL, CSA) to provide users with peace of mind and ensure safe operation in any industrial environment. And relying on ABB’s brand quality reputation and customer support, it is a reliable long-term investment.
Precautions
Installation environment: It should be installed in a dry, well ventilated, non corrosive gas, and low dust environment, avoiding direct sunlight to ensure normal heat dissipation and stable performance of the power supply.
Wiring specifications: Strictly follow the instructions for wiring operations to ensure correct and secure input and output wiring, and prevent short circuits, open circuits, and other faults caused by wiring errors, which may damage the power supply or equipment.
Load matching: The total power of the connected load should be within the rated output power range of the power supply to avoid overload operation, otherwise it may cause overheating, damage, and even safety accidents of the power supply.
Regular maintenance: Regularly check the appearance of the power supply for damage, loose wiring, and proper operation of the cooling fan. If necessary, perform cleaning, fastening, and other maintenance work.
The ABB SAFT110 power module, as a widely used power module in the field of industrial automation, is mainly used to provide stable and reliable power supply for various industrial equipment. It can adapt to various complex industrial environments, ensuring that equipment can obtain continuous and accurate electrical energy under different working conditions, thereby ensuring the stable operation of the entire industrial automation system. It is a key component in building efficient and reliable industrial control systems.
Technical Parameter
Input voltage range: It has a wide adaptability to input voltage and can withstand an input voltage range of [X1] V – [X2] V. This feature enables it to be used in industrial scenarios with different power supply conditions, whether it is old factories with large voltage fluctuations or emerging automated production lines with high requirements for power quality, it can be stably connected and work normally, effectively reducing the risk of equipment failure caused by voltage problems.
Output voltage accuracy: In terms of output voltage, the SAFT110 power module performs well, with an output voltage accuracy of ± [X]%. The high-precision output voltage ensures that the industrial equipment connected to it can obtain stable and compliant electrical energy, which helps to improve the stability of equipment operation and the consistency of product quality, meeting the strict standards for power supply stability in industrial production.
Power Capacity: This module has a certain power capacity and can provide continuous and stable power support for connected devices. Its rated power is [X] W, which can meet the electricity needs of various industrial equipment, from small precision control devices to medium power motor driven devices, all of which can operate normally under its power support.
Efficiency: In terms of energy utilization efficiency, the SAFT110 power module has a high performance, with an efficiency of up to [X]%. High energy efficiency not only helps reduce operating costs and energy waste for enterprises, but also conforms to the current trend of energy conservation and environmental protection in industrial production. It can save considerable electricity expenses for enterprises during long-term operation.
Functional Features
Overvoltage and overcurrent protection functions: The SAFT110 power module is equipped with comprehensive overvoltage and overcurrent protection mechanisms. When an abnormal increase in input voltage exceeding the safety threshold or an excessive output current is detected, the protection function will immediately activate. Overvoltage protection can quickly cut off the circuit and prevent damage to backend equipment caused by excessive voltage; Overcurrent protection can prevent the module itself and connected devices from burning out due to current overload, effectively protecting the safety and stability of the entire system and greatly improving the service life of the equipment.
Thermal management function: Considering the possible high temperatures in industrial environments and the heat generated by long-term operation of the module, this module is equipped with efficient thermal management functions. Through reasonable heat dissipation structure design and built-in temperature monitoring components, when the temperature of the module rises to a certain level, the cooling fan will automatically start to accelerate heat dissipation, ensuring that the module always operates within the appropriate temperature range. Good thermal management functions help maintain the stability of module performance and reduce the probability of electrical performance degradation and faults caused by high temperatures.
Redundant design (if any): Some models of SAFT110 power modules adopt the concept of redundant design. By working in parallel with multiple power modules, when one module fails, the other normal modules can seamlessly take over the load and continue to provide power support to the system, ensuring that the industrial production process will not be interrupted due to power module failures. This redundant design greatly improves the reliability of the entire power supply system, which is of great significance for industries that require extremely high production continuity, such as chemical and power industries.
Working principle
The working process of the SAFT110 power module mainly includes two key steps: energy conversion and regulation. Firstly, the input AC power is rectified by a circuit to convert it into DC power, preparing for subsequent processing. Next, the converted DC power enters the power conversion circuit, and through a series of switching elements (such as MOSFETs, etc.), under the precise control of the control circuit, the DC power is converted into AC or DC power output that meets the specific voltage, frequency, and waveform requirements of the equipment. Throughout the process, the control circuit will monitor the input and output parameters such as voltage and current in real time, and adjust the power conversion circuit according to preset standards and algorithms to ensure the stability and accuracy of the output electrical energy. At the same time, the protection circuit will continuously monitor the system status. Once abnormal conditions such as overvoltage, overcurrent, overheating, etc. are detected, corresponding protective measures will be taken immediately to ensure the safety of the module and backend equipment.

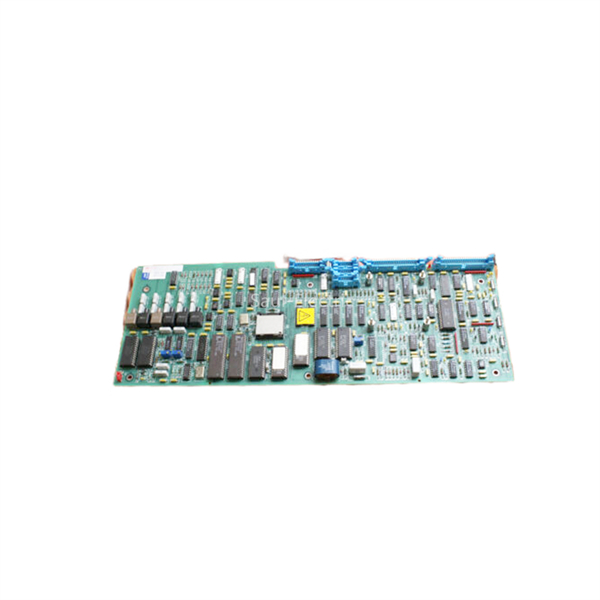

The ABB SAFT103 Industrial Control Module is a key equipment in the field of industrial automation, mainly used to achieve precise control and monitoring in industrial production processes. It can efficiently handle various complex control tasks, operate stably in various industrial environments, help enterprises improve production efficiency, and ensure the reliability and stability of the production process.
Specification parameters
Working voltage: With a wide voltage input range, it can adapt to different power supply environments and ensure stable operation of equipment under various voltage conditions. The specific working voltage range is [X] V – [X] V, which can effectively reduce the risk of equipment failure caused by voltage fluctuations.
Output frequency: The output frequency is precise and adjustable, which can meet the specific frequency requirements of different industrial equipment. The output frequency range is [X] Hz – [X] Hz, and by precisely controlling the frequency, the stability and efficiency of the equipment operation are ensured.
Communication interface: equipped with multiple standard communication interfaces, such as PROFIBUS PA interface, etc. The PROFIBUS PA interface complies with Profile 3.01 (fieldbus standard PROFIBUS, EN), and its transmission signal design follows the IEC 61158-2 standard. In addition, the module also supports manufacturer specific PROFIBUS PA ID no. 0x3430, and can also use PROFIBUS standard IDs no. 0x9700 or 0x9740 for seamless communication with other devices and the construction of complex industrial automation control systems.
Current output setting: The factory setting for current output is 4-20 mA, and the signal can be configured to “active” or “passive” mode. The current setting is included in the subsequent settings and can be configured for active/passive current output through system tools or with the help of PROFIBUS DP master class 2 such as Asset Vision Basic.
Core functions
Data collection and processing: SAFT103 can quickly and accurately collect data from various sensors in industrial sites, such as temperature, pressure, flow rate, etc., and efficiently process and analyze these data to provide reliable basis for subsequent control decisions.
Logic control: Built in powerful logic control function, can accurately control industrial equipment based on preset logic rules and collected data, achieve equipment start stop, speed adjustment, valve opening control and other operations, ensuring that the production process proceeds in an orderly manner according to the predetermined process.
Communication function: With rich communication interfaces, high-speed data transmission and interaction with other industrial equipment and control systems can be achieved, facilitating the construction of a distributed industrial automation network and enabling the entire production system to achieve information sharing and collaborative work.
Precautions
Installation environment: It should be installed in a dry, well ventilated, and suitable temperature environment, avoiding installation in damp, high temperature, corrosive gas, or strong electromagnetic interference places to prevent damage to the module and affect its normal operation.
Electrical connection: When making electrical connections, it is necessary to strictly follow the requirements of the product manual to ensure that the wiring is firm and correct, and to avoid electrical faults such as short circuits and open circuits. At the same time, attention should be paid to the correct polarity connection of the power supply to prevent damage to the module due to power connection.
Software configuration: When configuring modules, caution should be exercised to ensure the accuracy of configuration parameters. Incorrect configuration may result in module malfunction or control abnormalities. After the configuration is completed, it is recommended to conduct necessary testing and validation to ensure that the system runs properly.
Similar model supplement
ABB SAFT104: Compared to SAFT103, SAFT104 has been optimized and upgraded in certain functions. For example, it may have higher data processing speed and be able to respond and handle complex control tasks faster. In terms of communication, it may support more communication protocols or have higher communication bandwidth, making it more efficient and convenient to communicate with other devices. In terms of applicable scenarios, SAFT104 is more suitable for industrial automation projects that require high real-time performance and large data processing volumes.
ABB SAFT102: SAFT102 is a simplified version of SAFT103, which is relatively weaker in terms of functionality and performance. The number of data acquisition channels may be relatively small, and the processing capacity may also be relatively limited. However, it has the advantage of lower cost and is suitable for small industrial automation projects that do not require particularly high control accuracy and functionality, and have limited budgets. It can help enterprises effectively control costs while meeting basic control needs.
Application scenarios
Energy industry: In power plants, SAFT103 can be used to monitor and control the operating status of power generation equipment, such as turbines, generators, etc., to ensure stable and efficient power production. In substations, precise control of power transmission and distribution processes can be achieved to ensure reliable transmission of electrical energy.
Oil and gas industry: applied in oil extraction, refining, and natural gas transportation. Real time monitoring and control of various equipment, such as pumping units, pipeline valves, etc., can ensure the safety and stability of the production process, improve production efficiency, and reduce operating costs.
Manufacturing industry: In various manufacturing production lines such as automobile manufacturing and electronic equipment manufacturing, SAFT103 is used to control the operation of production equipment, achieve automated production processes, improve product quality and production efficiency, such as controlling the movement of robots and the transmission speed of production lines.
Transportation industry: Play a role in the automation control system of transportation hubs, such as controlling airport baggage transportation systems, port cargo loading and unloading equipment, etc., to ensure the efficient and smooth operation of transportation processes.
Product Overview: ABB SA801F 3BDH00011-REF is a power supply equipment produced by ABB, which is characterized by supporting 115/230VAC dual voltage input. This design enables it to operate in various global power grid environments with different standards, providing stable and reliable power supply for various electrical equipment. It has broad application potential in industrial automation, commercial buildings, and civil electronic devices.
Brand background: ABB, as a global leader in power and automation technology, has a development history of over a hundred years. In the field of power equipment manufacturing, we have accumulated profound technical expertise and rich practical experience. Its products are renowned for their excellent reliability, advanced technology, and strict quality standards. With a global layout of research and development centers and production bases, ABB is able to quickly respond to market demand and provide customers with innovative and customized power solutions. SA801F 3BDH00011-REF power supply products adhere to the consistent advantages of ABB brand and are committed to meeting the power supply needs of different customers in complex power environments.
Specification parameters
Input voltage: Supports dual voltage input of 115/230VAC, can automatically adapt to different grid voltages, and is convenient for use in different regions around the world.
Output parameters: Although the specific output voltage and current parameters are not clear, it is speculated that stable DC output voltage will be provided according to different application scenarios, such as common 12V, 24V, etc. The output current will vary according to the power level to meet the needs of different loads.
Power: The product’s power determines its carrying capacity, and specific values need to refer to the product manual. Generally, different power levels are designed according to the application scenario to meet the power supply needs from low-power devices to high-power devices.
Efficiency: Efficient power conversion efficiency is an important indicator of power performance, and ABB’s power products usually perform well in this regard, effectively reducing energy loss and operating costs. It is expected that the conversion efficiency of this product can reach a high level, such as around 85% -95%.
Protection level: To ensure safe and stable operation in different environments, it may have a certain protection level, such as IP20, which can prevent solid foreign objects with a diameter greater than 12mm from entering and meet the requirements of general indoor environments; If applied to special environments, there may be versions with higher protection levels.
Working temperature range: The working temperature range of general industrial power supplies is wide to adapt to different working environments. The expected operating temperature range of this product is around -20 ℃ -70 ℃, and it can work normally in a certain degree of high or low temperature environment.
Core functions
Voltage Conversion and Stable Output: Convert 115/230VAC AC power into stable DC power required by the equipment. Through internal voltage stabilization circuits and filtering devices, ensure the stability of the output voltage and reduce the impact of voltage fluctuations on the load equipment.
Overload protection: When the load current exceeds the rated current of the power supply, the overload protection mechanism is automatically activated to prevent damage to the power supply due to overload and protect the backend equipment from the impact of excessive current.
Short circuit protection: Once an output short circuit is detected, the output circuit is quickly cut off to avoid serious damage to the power supply and load caused by the short circuit current. After troubleshooting, it can automatically resume normal operation.
Overvoltage protection: When the input voltage is too high or the output voltage rises abnormally, the overvoltage protection function is activated to prevent damage to the equipment caused by excessive voltage and ensure that the equipment operates within a safe voltage range.
Working principle: The power supply first converts the input 115/230VAC AC power into DC power through a rectification circuit, and then removes impurities through a filtering circuit to obtain a relatively smooth DC voltage. Next, the DC voltage is adjusted and transformed through the switching power supply circuit to achieve the desired output voltage value. During this process, the feedback control system will monitor the output voltage and current in real time, and automatically adjust the working state of the switching power supply according to load changes to maintain stable output. When abnormal situations such as overload, short circuit, or overvoltage occur, the protection circuit will quickly act to cut off the power output or take other protective measures to ensure the safety of the power supply and load.
Key advantages
Brand reliability: Relying on ABB’s brand advantages, our products have strict guarantees in terms of quality and reliability. After extensive testing and practical application verification, we can provide users with long-term stable power supply services.
Wide voltage input adaptability: The 115/230VAC dual voltage input design enables it to be widely used worldwide without the need for additional voltage conversion equipment, making it convenient for cross-border projects and applications in different power grid environments.
Multiple protection functions: With comprehensive overload, short circuit, and overvoltage protection functions, it effectively protects the power supply and connected equipment, reduces the risk of equipment damage caused by power abnormalities, and improves the stability and reliability of the system.
Efficient and energy-saving: High power conversion efficiency can reduce energy consumption, meet the requirements of modern green environmental protection and energy conservation, and save users long-term operating costs.
precautions
Installation environment: It should be installed in a dry and well ventilated place, avoiding direct sunlight and high temperature, humid environment. The installation location should be away from heat sources and strong electromagnetic interference sources to prevent affecting the performance and lifespan of the power supply.
Wiring requirements: When connecting the power supply, it is necessary to ensure that the input voltage matches the local grid voltage, and to connect it in the correct way to avoid short circuits or other faults caused by incorrect wiring. At the same time, ensure that the wiring is secure and prevent loose connections from causing poor contact.
Load matching: When using, ensure that the load power is within the rated power range of the power supply to avoid overload operation. If multiple loads need to be connected, it is important to note that the total load power should not exceed the maximum carrying capacity of the power supply.
Regular maintenance: Regularly check the working status of the power supply to see if there are any abnormal heating, odor, or noise phenomena. Regularly clean the surface of the power supply to prevent dust accumulation from affecting heat dissipation. If any problems are found, professional personnel should be contacted promptly for repair.
The ABB PM632 processor module is a key component in the field of industrial automation. As an important part of the ABB 800xA automation system, it bears the responsibility of processing and controlling industrial automation processes. It is widely used in large-scale industrial scenarios such as power, chemical, and water treatment, providing solid support for achieving efficient and accurate automation control.
Brand background
ABB, as a globally renowned leader in the fields of power and automation technology, has a long history of over 130 years and has accumulated profound technical expertise and rich practical experience in electrical equipment manufacturing, automation solutions, and other areas. With its persistent pursuit of innovation and strict control of quality, ABB’s products and services are distributed in more than 100 countries around the world, and its reliability and progressiveness are recognized by the industry. PM632 processor module is one of the typical representatives of ABB brand’s outstanding technology and quality.
Specification parameters
Working voltage: 220V
Output frequency: 65Hz
Net weight of product: 1.2 kilograms
Dimensions: 50 * 76mm
Structural form: Suitable for specific installation structures to meet the installation needs of different industrial environments
Instruction Processor Type: Hard PLC with efficient and stable instruction processing capability
I/O Points: Belongs to small-scale I/O point configuration, suitable for automation system scenarios with moderate scale and certain requirements for I/O quantity but not too complex
Core functions
Complex automation process processing: Equipped with high-performance processors, it can quickly and accurately process a large amount of data and control instructions generated by automation equipment. Whether it is conventional sequential control or complex logical operations, it can efficiently respond and ensure the smooth operation of industrial production processes. For example, in chemical production, temperature, pressure, flow rate and other parameters during the reaction process can be accurately controlled based on data collected by various sensors.
Powerful communication function: With rich communication interfaces, it can stably communicate with various external devices, realizing data exchange and collaborative work between different systems. In a smart factory, it can transmit data with the upper computer, other controllers, field instruments, and other devices to build a complete automation control network, promoting the information flow and collaborative operation of the entire production system.
Convenient system integration: Multiple interface designs make it easy to integrate into automation systems of different architectures, without the need for complex adaptation processes, and seamlessly integrate with existing systems. When upgrading and renovating old industrial systems, PM632 can easily integrate into the original equipment system, reducing the difficulty and cost of renovation caused by system compatibility issues.
Working principle
The PM632 processor module is based on a hard PLC architecture and performs high-speed operations and logical judgments on input signals through an internal microprocessor. When the system is running, sensors, field devices, etc. input real-time status information in the form of electrical signals to the I/O interface of the module. The microprocessor analyzes and processes these input data according to the preset program logic, and then generates corresponding control signals, which are transmitted to the executing agencies such as motors, valves, etc. through the output interface, thus achieving precise control of industrial equipment and ensuring that the production process proceeds in an orderly manner according to the established process. For example, in the power system, based on changes in parameters such as voltage and current of the grid, the operation of switch devices is controlled through PM632 processing to maintain stable operation of the grid.
Key advantages
High reliability: By adopting advanced manufacturing processes and high-quality electronic components, and undergoing rigorous quality inspection processes, it can operate stably for a long time in complex and harsh industrial environments, significantly reducing equipment failure rates, minimizing production interruptions caused by equipment failures, and ensuring the continuity and stability of enterprise production.
Efficient processing capability: Its high-performance processor and optimized algorithms enable fast data processing speed, timely response, and the ability to quickly respond to various dynamic changes in industrial production processes, effectively improving production efficiency and product quality. On high-speed automated production lines, product testing data can be quickly processed, production equipment parameters can be adjusted in a timely manner, and products can be ensured to meet quality standards.
Easy to integrate and maintain: Rich interface design facilitates integration with various devices, reducing the difficulty of system construction; At the same time, the module has a comprehensive self diagnostic function, which can monitor its own operating status in real time. Once a fault is detected, it can quickly locate the problem, facilitate maintenance and repair by technical personnel, and shorten equipment downtime.
Precautions
Installation environment: It should be installed in a dry, well ventilated, non corrosive gas and strong electromagnetic interference environment. The ambient temperature should be maintained within the specified range to avoid affecting the normal operation and service life of the module due to environmental factors.
Power connection: Ensure that the power connection is correct and stable, avoid excessive power fluctuations or short circuits, otherwise the module may be damaged. It is recommended to equip a stable power filtering device to provide pure and stable power to the module.
Program writing and updating: When performing program writing and updating operations, it is necessary to strictly follow the programming specifications and operating procedures provided by ABB to prevent system failures caused by program errors. Before updating the program, be sure to back up the original program so that it can be restored in a timely manner in case of any problems.
Similar model supplement
Similar models to PM632 include PM640. PM640 has stronger processing capabilities and is suitable for large-scale industrial projects that require extremely high data processing speed and computational complexity, such as automation control systems in large steel plants; PM632, on the other hand, performs outstandingly in terms of cost-effectiveness and is more suitable for enterprises with slightly smaller scale, limited budget, but high requirements for automation control. There is some overlap in functionality and application scenarios between the two, but each has its own focus. Enterprises can make reasonable choices based on their actual needs.
Application scenarios
Power industry: used for power grid monitoring and dispatching systems, real-time monitoring of power grid operating parameters, rapid processing and control based on load changes, fault conditions, etc., to ensure the safety and stable power supply of the power grid; In power plants, the start stop and load regulation of generator units can be controlled to improve power generation efficiency and energy quality.
Chemical industry: Accurately control key parameters such as reactor temperature, pressure, and material flow rate in the chemical production process to ensure that chemical reactions proceed according to predetermined conditions, guarantee production safety, and improve product quality and production efficiency.
Water treatment industry: In scenarios such as waterworks and sewage treatment plants, controlling the start and stop of water pumps and the opening and closing of valves automatically adjusts the treatment process according to changes in water quality and quantity, achieving efficient utilization of water resources and meeting sewage discharge standards.
PML630 is a power management IED that provides comprehensive load shedding solution for the power network in an industrial plant. It protects the plant against blackouts and power source outages due to system disturbances.
This IED is a member of ABB’s Relion® product family and a part of its 630 product series characterized by functional scalability and flexible configurability.
PML630 is identical to the Relion 630 series IEDs and does not have any specific hardware modules. It is only the application functions pre-loaded in the IED that differentiate it from the other 630 series IEDs.
The IED supports various modes of load shedding.
• Fast load shedding based on network contingencies
• Slow load shedding based on transformer overloading or the maximum demand violation of the grid tie feeder
• Manual load shedding based on operator defined priorities
The supported communication protocols including the IEC 61850 offer seamless connectivity with other Relion series IEDs and COM600 Station Automation device to realise the load shedding functionality.
The IED uses GOOSE and MMS communication profiles for I/O data transfer with other Relion series IEDs and COM600 Station Automation device.
Core functions
Ensuring power supply for critical loads: In the event of network interference, PML630 can quickly, accurately, and selectively cut off non critical loads to ensure continuous power supply for critical process loads. This function greatly reduces the duration and frequency of industrial production interruptions in the distribution network, while avoiding damage to electrical and process equipment due to power outages.
Based on comprehensive power and low-frequency load shedding: This controller integrates comprehensive power and low-frequency load shedding mechanisms. In the face of emergency situations such as loss of single or multiple power sources, grid disintegration, network or process conditions (such as frequency change rate, etc.), the ability to quickly respond to load shedding ensures the stability of the power system.
Working mode
Fast load shedding: When a serious imbalance in the power system is detected due to network emergencies (such as short circuit faults, line trips, etc.), PML630 can perform a fast load shedding operation in a very short period of time (from interference detection to unloading command generation time guaranteed within 20 milliseconds), quickly cutting off some less important loads, preventing a significant decrease in system frequency and voltage, and maintaining stable system operation.
Slow load shedding: PML630 will activate the slow load shedding mode based on situations such as transformer overload or violations of the maximum demand of power grid interconnection lines and generators. By gradually cutting off the load, the power system can be restored to a safe operating state, avoiding damage to equipment caused by long-term overload.
Manual load shedding: Operators can manually initiate unloading operations based on power definitions or load feeder priorities. This flexible control method allows for human intervention in power distribution in specific situations, such as planned maintenance, system debugging, etc., to ensure that system operation meets actual needs.
Low frequency load shedding (backup): As a backup mechanism for fast and slow load shedding, low frequency load shedding plays a role when the system frequency continues to decrease and other load shedding measures fail to effectively prevent it. When the system frequency is below the preset threshold, PML630 will cut off some loads in the predetermined order and magnitude to prevent system frequency collapse.
Safety information Dangerous voltages can occur on the connectors, even though the auxiliary voltage has been disconnected. Non-observance can result in death, personal injury or substantial property damage.
Only a competent electrician is allowed to carry out the electrical installation. National and local electrical safety regulations must always be followed.
The frame of the IED has to be carefully earthed. Whenever changes are made in the IED, measures should be taken to avoid inadvertent tripping.
The IED contains components which are sensitive to electrostatic discharge. Unnecessary touching of electronic components must therefore be avoided.
Manual conventions
Conventions used in IED manuals. A particular convention may not be used in this manual.
Abbreviations and acronyms in this manual are spelled out in the glossary.
The glossary also contains definitions of important terms.
Push button navigation in the LHMI menu structure is presented by using the push button icons, for example:
To navigate between the options, use and .HMI menu paths are presented in bold, for example:
Select Main menu/Settings.
LHMI messages are shown in Courier font, for example:
To save the changes in non-volatile memory, select Yes and press .
Parameter names are shown in italics, for example:
The function can be enabled and disabled with the Operation setting.
The ^ character in front of an input or output signal name in the function block symbol given for a function, indicates that the user can set an own signal name in PCM600.
The character after an input or output signal name in the function block symbol given for a function, indicates that the signal must be connected to another function block in the application configuration to achieve a valid application configuration.
ABB 64669303 NAIO-03F OPTION/SP KIT ANALOG IO-UNITKIT; I/O KIT
Brand reliance and product positioning
Relying on ABB’s profound expertise and outstanding technical strength in the field of industrial automation, the 64669303 NAIO-03F OPTION/SP KIT ANALOG IO – UNITKIT (hereinafter referred to as NAIO-03F Analog I/O Kit) is a key component designed specifically for the expansion of data acquisition and control requirements in industrial automation systems. It can endow various industrial equipment with precise analog signal processing capabilities. In scenarios such as industrial automation production lines and intelligent factory control systems, it effectively connects sensors, actuators, and control systems to ensure accurate transmission and efficient processing of analog signals in industrial production processes. It is an important support for achieving precise control and intelligent management of industrial automation.
Specification parameters
Channel configuration: This kit is equipped with multiple analog input/output channels, typically with 8 analog input channels and 4 analog output channels. The analog input channel can accurately collect various analog signals, such as voltage signals output by pressure sensors, current signals output by temperature sensors, etc; The analog output channel can stably output analog signals, which are used to control the opening of regulating valves, motor speed, and other actuators to meet the diverse industrial application requirements for analog signal processing.
Signal type and accuracy: Supports multiple common analog signal types, with input signals covering 0-10V voltage signals and 4-20mA current signals, and output signals also including 0-10V voltage and 4-20mA current signals. Its analog signal conversion accuracy is high, and the resolution of analog-to-digital conversion (A/D) and digital to analog conversion (D/A) can reach 16 bits, which can achieve fine processing of analog signals and ensure that the collected and output signals accurately reflect the physical quantity changes in the industrial production process.
Electrical characteristics: The working voltage is 24VDC, with good electrical isolation performance, which can effectively suppress electromagnetic interference and ensure the stability and accuracy of signal transmission. At the same time, the kit has low power consumption, which meets industrial energy-saving requirements and reduces energy consumption while ensuring performance.
Physical specifications: Adopting a compact modular design, the size is small and easy to install in industrial control cabinets. Its shell is sturdy and durable, with a protection level of IP20, and can adapt to common environmental conditions such as dust and slight collisions in industrial sites, ensuring reliable operation in complex industrial environments.
Core functions
Accurate analog signal acquisition: With high-resolution A/D conversion technology, the NAIO-03F analog I/O kit can accurately collect various analog signals from industrial sites, quickly convert the continuous analog signals output by sensors into digital signals, and transmit them to the control system for analysis and processing. In the chemical production process, real-time analog signals such as temperature and pressure inside the reaction vessel can be collected to provide reliable data for precise control of the production process.
Stable analog signal output: Through high-precision D/A conversion, the kit can stably convert the digital signal output by the control system into an analog signal, driving the actuator to perform corresponding actions. In automated production lines, analog signals can be output to control the movement speed and force of the robotic arm according to production process requirements, achieving precise production operations.
Signal conditioning and processing: Built in signal conditioning circuit can filter, amplify, linearize and other processes the input analog signal to improve signal quality and ensure the accuracy and reliability of the collected signal. At the same time, it supports calibration and compensation of output signals, further improving the accuracy and stability of analog signal output.
Flexible Communication Interface: Equipped with standard communication interfaces such as Profibus DP, Modbus RTU, etc., it can easily communicate with control systems such as PLC and DCS, achieving fast data transmission and exchange. Users can flexibly configure the working mode and channel parameters of the suite through programming to meet the personalized needs of different industrial application scenarios.
Working principle
After the sensors on the industrial site generate analog signals, the analog input channel of the NAIO-03F analog I/O kit collects the signals, processes them through the signal conditioning circuit, converts the analog signals into digital signals through an A/D converter, and temporarily stores them in the internal memory. The control system sends instructions to the kit through a communication interface, reads stored digital signals, analyzes and processes them, and sends the control instructions back to the kit in the form of digital signals. After the analog output channel of the kit receives a digital signal, it is converted into an analog signal through a D/A converter, and then processed appropriately through a signal conditioning circuit. Finally, it is output to the actuator to achieve control of industrial equipment, thus completing the entire process of analog signal acquisition, processing, and control.
Key advantages
High precision and high reliability: The 16 bit signal conversion resolution and comprehensive signal conditioning function ensure the high precision of analog signal acquisition and output; Good electrical isolation and robust physical design enable it to have excellent anti-interference ability and environmental adaptability. It can operate stably for a long time in complex industrial environments, effectively reducing production interruptions caused by signal errors and equipment failures, and improving the reliability and stability of industrial production.
Flexible scalability and compatibility: The modular design allows the NAIO-03F analog I/O kit to flexibly expand the number of channels according to actual needs, meeting the signal processing requirements of industrial projects of different scales. Rich communication interfaces and support for multiple industrial communication protocols enable seamless integration with control systems and equipment from different manufacturers, improving the compatibility and integration of industrial automation systems, and reducing the cost of system upgrades and renovations.
Convenient operation and maintenance: Supports parameter configuration and function settings through programming software, with a user-friendly interface that facilitates debugging and management by technical personnel. At the same time, the kit has a comprehensive self diagnostic function, which can monitor its own working status in real time, issue alarm signals in a timely manner when faults occur, and provide feedback on fault information through indicator lights and communication interfaces, making it easy to quickly locate and troubleshoot faults, reducing equipment maintenance time and costs.
precautions
Installation environment: During installation, a dry, well ventilated environment without strong electromagnetic interference should be selected to avoid the impact of harsh environments such as high temperature, humidity, and corrosive gases on the performance and service life of the kit. The installation location should be far away from strong electromagnetic interference sources such as high-power motors and transformers to ensure the accuracy of signal transmission.
Wiring specifications: Strictly follow the product manual for wiring operations, ensuring that the power and signal lines are firmly connected and have the correct polarity. For analog signal lines, shielded cables should be used and the shielding layer should be reliably grounded to reduce the impact of electromagnetic interference on the signal. At the same time, pay attention to the wiring methods of different types of signals (voltage signals, current signals) to avoid equipment damage or signal abnormalities caused by wiring errors.
Software configuration and debugging: When configuring software, carefully check the channel parameters, communication protocols, and other settings to ensure consistency with the control system and actual application requirements. During the debugging process, gradually check the signal acquisition and output functions, and promptly troubleshoot and solve any problems found. Regularly update the software of the suite to obtain the latest features and performance optimizations, while backing up configuration parameters to prevent data loss.
Similar model supplement
ABB NAIO-04F: Compared to NAIO-03F, NAIO-04F has increased the number of analog input channels, with 12 analog input channels and 4 analog output channels. It is suitable for industrial scenarios that require the collection of more analog signals, such as environmental monitoring systems in large factories, and can simultaneously collect analog signals such as temperature, humidity, gas concentration, etc. from multiple areas.
ABB NAIO-02F: This model has a relatively small number of analog I/O channels, with 4 analog input channels and 2 analog output channels, making it more suitable for small industrial automation projects or application scenarios with strict cost control, such as automation equipment control in small laboratories. It meets basic analog signal processing requirements while reducing equipment procurement costs.
Application scenarios
Industrial automation production line: In automated production lines such as automotive manufacturing and electronic assembly, the NAIO-03F analog I/O kit can connect various sensors (such as pressure sensors, displacement sensors) and actuators (such as pneumatic valves, servo motors) to achieve precise monitoring and control of temperature, pressure, position and other parameters in the production process, ensuring consistency in product quality and improving production efficiency.
Process industry control: In the fields of chemical, petroleum, power and other process industries, it is used to collect and control key process parameters in the production process, such as reactor temperature, pipeline pressure, liquid level height, etc. Through precise analog signal processing, optimized control of the production process is achieved to ensure production safety, improve energy utilization efficiency, and increase product output.
Intelligent Building and Energy Management: In intelligent building systems, analog signals from environmental sensors (such as temperature and humidity sensors, lighting sensors) can be collected to control the operation of air conditioning, lighting, and other equipment, achieving energy conservation, consumption reduction, and creating a comfortable environment. In the energy management system, power monitoring equipment is connected to collect analog signals such as current, voltage, and power, providing data support for energy consumption analysis and optimization scheduling.
ABB MSR04XI Ethernet Communication Module is an Ethernet communication module designed specifically for the industrial automation field, aimed at achieving efficient and stable data exchange between different devices and systems. It provides critical connections for the construction of industrial network architecture, enabling various industrial devices to easily access Ethernet, breaking down communication barriers between devices, and helping to build an interconnected and intelligent industrial environment. Through this module, sensors, controllers, actuators, and other devices on the production line can communicate smoothly, laying a solid foundation for the automation and intelligent control of industrial production.
Specification parameters
Communication interface: Equipped with standard Ethernet interface, supporting 10/100Mbps adaptive transmission rate, able to flexibly adapt to different network environments, ensuring high-speed data transmission.
Electrical characteristics: The working voltage range is 24VDC ± 10%, with low power consumption, ensuring stable operation in industrial environments while reducing energy loss.
Physical dimensions: Compact in size, easy to install in various industrial control cabinets, does not occupy too much space, and is conducive to optimizing industrial equipment layout.
Working temperature: It can work stably within a wide temperature range of -25 ℃ to+70 ℃, adapting to the temperature conditions of different industrial scenarios. Whether it is a cold outdoor working environment or a high-temperature industrial production workshop, it can operate reliably.
Core functions
Data transmission: Efficient transmission of industrial data, supporting multiple industrial protocols such as Modbus TCP, PROFINET, etc., can quickly and accurately transmit various control instructions, status information, and production data between devices and systems, achieving precise control and real-time monitoring.
Protocol conversion: It can convert various communication protocols used by different devices into Ethernet compatible protocols, enabling devices that are originally incompatible with communication protocols to be interconnected through Ethernet, greatly improving the compatibility and integration of industrial networks.
Network Management: Supports Simple Network Management Protocol (SNMP) for remote monitoring and management of modules in the network. It can obtain real-time information on module working status, traffic, etc., discover and solve potential problems in a timely manner, and ensure stable network operation.
PURPOSE
The Serial Communications Module provides a serial interface between the SC300E environment and a variety of remote devices complying with the standard RS232-C. At least one Serial Communications Module must be used in the system and fitted in Slot 10 of the main chassis to enable communications between the system processors and the workstations.
The workstation link is used for loading the application software and monitoring ladder and diagnostic functions. The link utilises Port 0 of the module. Additional modules can be fitted to any other I/O slot, ‘wrong slotting’ is prevented by mechanical coding blocks (Figure 2-1 ). The system software identifies the module via a built-in hardware identifier.
Circuit triplication and voting procedures make the module single fault tolerant and front panel
indicators show Tx/Rx activity, the circuit on-line status and the health of the module.
Communications connections are via four identical ports on the front panel (Ports 0 to 3) and these connections are duplicated on the field connector (J2) at the rear.
A fifth port is for diagnosticpurposes only.
The module is compatible with ‘single slot hot repair’ and the front panel has a switch to enable a request that the module be taken off line.
This document is intended to provide a general understanding of the function of Serial
Communications Module, sufficient to enable basic maintenance operations to be effected in the field.
TECHNICAL DESCRIPTION
PHYSICAL
The Serial Communications Module is a 9U high PCB with integral front panel and front and rear connectors; a plug-in daughter board carries the RS232 interface circuits. Figure 1-1shows the general layout, location of the connectors and front panel components.
Mechanical coding blocks
All Input/Output modules carry two mechanical coding blocks equipped with pins which mate with holes in corresponding blocks in the chassis and prevent the module being inserted into the wrong slot. The pins in the module blocks are factory installed in a pattern determined by the module and corresponding set screws are removed from the chassis coding blocks to enable fitting. Unused holes are plugged with set screws.
Links
The PCB has a total of nine links. For the top section of the PCB the links are located and configured as follows:
Three LK1 links (3-pin) located approximately 80mm down from the top of the module, not user configurable, link not fitted.
Three LK2 links (8-pin) located approximately 210mm down from the top of the module Module ID links which should always be fitted
Triguard SC300E
On the lower section of the PCB are three further links, LK2, LK3 and LK4, located and configured as follows:
LK2 (2-pin) located approximately 220mm down from the top of the module and 110mm in from the front face, used in the voltage monitoring circuit, always fitted.
LK3 (3 -pin) located beneath the plug in daughterboard. Used for 3-2-1-or 3-2-0operation,factory fitted hard wired, all pins linked for 3-2-1 mode.
LK4 (3-pin) located approximately 250mm down from the top of the module and 220mm from the front face, used for the daughterboard clock speed setting, pins 1 and 2 linked.
